CD4 Alpha antibody | MIL17
Mouse anti Porcine CD4 alpha, clone MIL17 (MCA1749GA) used for the evaluation of CD4a expression on porcine peripheral blood mononuclear cells by flow cytometry.
Image caption:

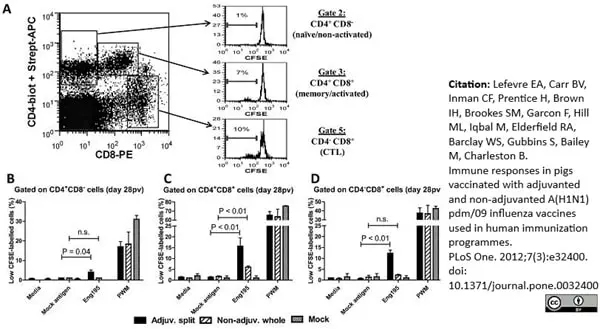

T cell sub-population proliferation monitored by CFSE labeling in response to in vitro re-stimulation with H1N1 influenza. CFSE-labeled PBMC were cultured in vitro in the presence of 105EID50/ml inactivated Eng195, uninfected allantoic fluid (mock antigen), PWM or in media only. After 5 days, cells were stained with anti-CD4 and anti-CD8 monoclonal antibodies and analyzed by flow cytometry for CFSE intensity. Three T cell subsets were identified on the basis of their CD4 and CD8 expression, and an example of the CFSE pattern at day 7pv in response to inactivated Eng195 in these various subsets in a pig vaccinated with the adjuvanted split vaccine is shown (A). At day 28pv, the percentage of cells proliferating (CFSELow cells) in response to media alone, mock antigen or inactivated Eng195 was determined after gating on CD4+CD8− (B), CD4+CD8+ (C) or CD4−CD8+ (D) cells. Results are expressed as the mean percentage of proliferating (CFSELow) cells ± SEM. n.s = Not statistically significant.
From: Lefevre EA, Carr BV, Inman CF, Prentice H, Brown IH, Brookes SM, et al. (2012)
Immune Responses in Pigs Vaccinated with Adjuvanted and Non-Adjuvanted A(H1N1)pdm/09 Influenza Vaccines Used in Human Immunization Programmes.
PLoS ONE 7(3): e32400.
This image is from an open access article distributed under the terms of the Creative Commons Attribution License.
Mouse anti Porcine CD4 alpha, clone MIL17 (MCA1749GA) used for the identification of CD4 expressing cells in procine jejunal mucosa by immunofluorescence.
Image caption:

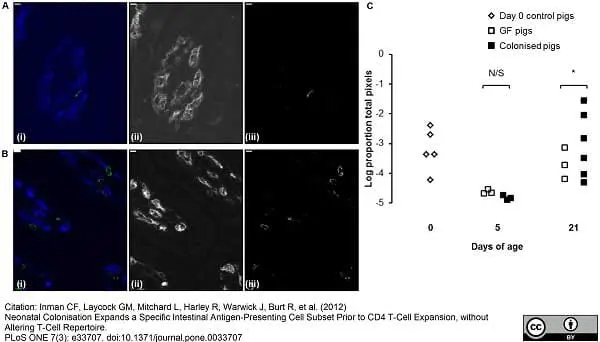

Colonisation expands mucosal CD4+ T cells by 21 days of age. (A) CD4 staining in jejunal mucosa from a GF pig and (B) a colonised pig at 21 days of age. Sections were stained with antibodies to CD4 (green) and capillary endothelium (MIL11; in blue). In both (A) and (B), (i) shows the two-colour image; (ii) shows the original greyscale image for the blue channel (endothelium); (iii) shows the original greyscale image for the green channel (CD4). Scale bar represents 10 μm. (C) Area of CD4+ T cell staining in jejunal sections from piglets at birth (open diamonds) and GF piglets (open squares) and colonized piglets (black squares) at 5 and 21 days of age (see Table 1 for numbers of piglets in each experiment). *p<0.05.
From: Inman CF, Laycock GM, Mitchard L, Harley R, Warwick J, Burt R, et al. (2012)
Neonatal Colonization Expands a Specific Intestinal Antigen-Presenting Cell Subset Prior to CD4 T-Cell Expansion, without Altering T-Cell Repertoire.
PLoS ONE 7(3): e33707.
This image is from an open access article distributed under the terms of the Creative Commons Attribution License.
Mouse anti Porcine CD4 alpha, clone MIL17 (MCA1749GA) used to identify CD4 expressing cells in porcine lamina propria by immunofluorescence.
Image caption:
Representation of 3 color fluorescence immunohistology of CD4 (red), CD25 (blue), Foxp3 (green), and CD4CD25 (magenta) positive staining in the distal jejunum lamina propria of a 28 day old female and male control (no dietary supplementation) piglets (A). Bar = 10 μm.
From: Christoforidou Z, Mora Ortiz M, Poveda C, Abbas M, Walton G, Bailey M, Lewis MC.
Sexual Dimorphism in Immune Development and in Response to Nutritional Intervention in Neonatal Piglets.
Front Immunol. 2019 Dec 9;10:2705.
doi: 10.3389/fimmu.2019.02705.
This image is from an open access article distributed under terms of a Creative Commons Attribution License.
Mouse anti Pig CD4 Alpha:Alexa Fluor® 647
Mouse anti Pig CD4 Alpha:FITC
Mouse anti Pig CD4 Alpha:Pacific Blue®
Mouse anti Pig CD4 Alpha
Mouse anti Pig CD4 Alpha:RPE
- Product Type
- Monoclonal Antibody
- Clone
- MIL17
- Isotype
- IgG2b
| Product Code | Applications | Pack Size | List Price | Quantity |
|---|---|---|---|---|
| MCA1749A647 | F | 100 Tests/1ml |
|
|
| MCA1749F | F | 0.1 mg |
|
|
| MCA1749PB | F | 100 Tests/1ml |
|
|
| MCA1749GA | C* F | 0.1 mg |
|
|
| MCA1749PE | F | 100 Tests |
|
Mouse anti Porcine CD4 alpha, clone MIL17 recognizes a ~55 kDa porcine homologue to the human CD4 antigen found on the surface of helper-T cells. MIL-17 was confirmed as a member of the CD4 alpha cluster at the ‘Third International Workshop on Swine Leukocyte Differentiation Antigens’ (Haverson et al. 2001). Porcine CD4 is a type 1 trans-membrane member of the immunoglobulin superfamily.
Pigs appear unusual amongst mammalian species as they appear to have four populations of resting T lymphocytes. In addition to the two populations of mutually exclusive CD4+/CD8- and CD4-/CD8+ lymphocytes, they also appear to have significant populations of CD4-/CD8- and CD4+/CD8+ cells. Lymphoblasts with a double positive phenotype have been described in other species but this is not the case for mature T lymphocytic calls (Saalmuller et al. 1987)
Mouse anti Pig CD4 alpha, clone MIL17 stains a population of cells with characteristic lymphocyte morphology in immunohistochemistry (Inman et al. 2010).
Pigs appear unusual amongst mammalian species as they appear to have four populations of resting T lymphocytes. In addition to the two populations of mutually exclusive CD4+/CD8- and CD4-/CD8+ lymphocytes, they also appear to have significant populations of CD4-/CD8- and CD4+/CD8+ cells. Lymphoblasts with a double positive phenotype have been described in other species but this is not the case for mature T lymphocytic calls (Saalmuller et al. 1987)
Mouse anti Pig CD4 alpha, clone MIL17 stains a population of cells with characteristic lymphocyte morphology in immunohistochemistry (
Product Details
- Target Species
- Pig
- Product Form
- Purified IgG conjugated to Alexa Fluor 647 - liquid
- Product Form
- Purified IgG conjugated to Fluorescein Isothiocyanate Isomer 1 (FITC) - liquid
- Product Form
- Purified IgG conjugated to Pacific Blue - liquid
- Product Form
- Purified IgG - liquid
- Product Form
- Purified IgG conjugated to R. Phycoerythrin (RPE) - lyophilized
- Reconstitution
- Reconstitute with 1.0 ml distilled water
- Preparation
- Purified IgG prepared by affinity chromatography on Protein A from tissue culture supernatant
- Preparation
- Purified IgG prepared by affinity chromatography on Protein A from tissue culture supernatant
- Preparation
- Purified IgG prepared by affinity chromatography on Protein A from tissue culture supernatant
- Preparation
- Purified IgG prepared by affinity chromatography on Protein A from tissue culture supernatant
- Preparation
- Purified IgG prepared by affinity chromatography on Protein A from tissue culture supernatant
- Buffer Solution
- Phosphate buffered saline
- Buffer Solution
- Phosphate buffered saline
- Buffer Solution
- Phosphate buffered saline
- Buffer Solution
- Phosphate buffered saline
- Buffer Solution
- Phosphate buffered saline
- Preservative Stabilisers
- 0.09% Sodium Azide (NaN3)
1% Bovine Serum Albumin - Preservative Stabilisers
0.09% Sodium Azide 1% Bovine Serum Albumin - Preservative Stabilisers
- 0.09% Sodium Azide (NaN3)
1% Bovine Serum Albumin - Preservative Stabilisers
- 0.09% Sodium Azide (NaN3)
- Preservative Stabilisers
0.09% Sodium Azide 1% Bovine Serum Albumin 5% Sucrose - Carrier Free
- Yes
- Immunogen
- Leucocytes isolated from porcine gut lamina propria.
- Approx. Protein Concentrations
- IgG concentration 0.05 mg/ml
- Approx. Protein Concentrations
- IgG concentration 0.1mg/ml
- Approx. Protein Concentrations
- IgG concentration 0.05 mg/ml
- Approx. Protein Concentrations
- IgG concentration 1.0 mg/ml
Storage Information
- Storage
- This product is shipped at ambient temperature. It is recommended to aliquot and store at -20°C on receipt. When thawed, aliquot the sample as needed. Keep aliquots at 2-8°C for short term use (up to 4 weeks) and store the remaining aliquots at -20°C.
Avoid repeated freezing and thawing as this may denature the antibody. Storage in frost-free freezers is not recommended. - Storage
- This product is shipped at ambient temperature. It is recommended to aliquot and store at -20°C on receipt. When thawed, aliquot the sample as needed. Keep aliquots at 2-8°C for short term use (up to 4 weeks) and store the remaining aliquots at -20°C.
Avoid repeated freezing and thawing as this may denature the antibody. Storage in frost-free freezers is not recommended. This product is photosensitive and should be protected from light. - Storage
- This product is shipped at ambient temperature. It is recommended to aliquot and store at -20°C on receipt. When thawed, aliquot the sample as needed. Keep aliquots at 2-8°C for short term use (up to 4 weeks) and store the remaining aliquots at -20°C.
Avoid repeated freezing and thawing as this may denature the antibody. Storage in frost-free freezers is not recommended. - Storage
- This product is shipped at ambient temperature. It is recommended to aliquot and store at -20°C on receipt. When thawed, aliquot the sample as needed. Keep aliquots at 2-8°C for short term use (up to 4 weeks) and store the remaining aliquots at -20°C.
Avoid repeated freezing and thawing as this may denature the antibody. Storage in frost-free freezers is not recommended. - Storage
- Prior to reconstitution store at +4oC. Following reconstitution store at +4oC.
DO NOT FREEZE.
This product should be stored undiluted. This product is photosensitive and should be protected from light. Should this product contain a precipitate we recommend microcentrifugation before use. - Guarantee
- 12 months from date of despatch
- Guarantee
- 12 months from date of despatch
- Guarantee
- 12 months from date of despatch
- Guarantee
- 12 months from date of despatch
- Guarantee
- 12 months from date of despatch
More Information
- Acknowledgements
- This product is provided under an intellectual property licence from Life Technologies Corporation. The transfer of this product is contingent on the buyer using the purchased product solely in research, excluding contract research or any fee for service research, and the buyer must not sell or otherwise transfer this product or its components for (a) diagnostic, therapeutic or prophylactic purposes; (b) testing, analysis or screening services, or information in return for compensation on a per-test basis; (c) manufacturing or quality assurance or quality control, or (d) resale, whether or not resold for use in research. For information on purchasing a license to this product for purposes other than as described above, contact Life Technologies Corporation, 5791 Van Allen Way, Carlsbad CA 92008 USA or outlicensing@thermofisher.com
- Acknowledgements
- This product is provided under an intellectual property licence from Life Technologies Corporation. The transfer of this product is contingent on the buyer using the purchased product solely in research, excluding contract research or any fee for service research, and the buyer must not sell or otherwise transfer this product or its components for (a) diagnostic, therapeutic or prophylactic purposes; (b) testing, analysis or screening services, or information in return for compensation on a per-test basis; (c) manufacturing or quality assurance or quality control, or (d) resale, whether or not resold for use in research. For information on purchasing a license to this product for purposes other than as described above, contact Life Technologies Corporation, 5791 Van Allen Way, Carlsbad CA 92008 USA or outlicensing@thermofisher.com
- Regulatory
- For research purposes only
Applications of CD4 Alpha antibody
| Application Name | Verified | Min Dilution | Max Dilution |
|---|---|---|---|
| Flow Cytometry | Neat | ||
| Flow Cytometry | Neat | ||
| Flow Cytometry | Neat | 1/10 | |
| Flow Cytometry | 1/25 | 1/200 | |
| Immunohistology - Frozen 1 | |||
| Immunohistology - Paraffin | |||
| Flow Cytometry | Neat |
- 1The epitope recognised by this antibody is reported to be sensitive to formaldehyde fixation and tissue processing. Bio-Rad recommends the use of acetone fixation for frozen sections.
Where this antibody has not been tested for use in a particular technique this does not necessarily exclude its use in such procedures. Suggested working dilutions are given as a guide only. It is recommended that the user titrates the antibody for use in their own system using appropriate negative/positive controls.
Where this antibody has not been tested for use in a particular technique this does not necessarily exclude its use in such procedures. Suggested working dilutions are given as a guide only. It is recommended that the user titrates the antibody for use in their own system using appropriate negative/positive controls.
Where this antibody has not been tested for use in a particular technique this does not necessarily exclude its use in such procedures. Suggested working dilutions are given as a guide only. It is recommended that the user titrates the antibody for use in their own system using appropriate negative/positive controls.
Where this product has not been tested for use in a particular technique this does not necessarily exclude its use in such procedures. Suggested working dilutions are given as a guide only. It is recommended that the user titrates the product for use in their own system using appropriate negative/positive controls.
Where this antibody has not been tested for use in a particular technique this does not necessarily exclude its use in such procedures. Suggested working dilutions are given as a guide only. It is recommended that the user titrates the antibody for use in their own system using appropriate negative/positive controls.
- Flow Cytometry
- Use 10ul of the suggested working dilution to label 106 cells in 100ul.
- Flow Cytometry
- Use 10ul of the suggested working dilution to label 106 cells in 100ul.
- Flow Cytometry
- Use 10ul of the suggested working dilution to label 106 cells in 100ul.
- Flow Cytometry
- Use 10ul of the suggested working dilution to label 106 cells in 100ul
- Flow Cytometry
- Use 10ul of the suggested working dilution to label 106 cells in 100ul.
Copyright © 2021 Bio-Rad Antibodies (formerly AbD Serotec)
Secondary Antibodies Available
Negative Isotype Controls Available
| Description | Product Code | Applications | Pack Size | List Price | Quantity |
|---|---|---|---|---|---|
| Mouse IgG2b Negative Control:Alexa Fluor® 647 | MCA691A647 | F | 100 Tests/1ml |
|
|
| Mouse IgG2b Negative Control:FITC | MCA691F | F | 100 Tests |
|
|
| Mouse IgG2b Negative Control:Pacific Blue® | MCA691PB | F | 100 Tests/1ml |
|
|
| Mouse IgG2b Negative Control | MCA691 | F | 100 Tests |
|
|
| Mouse IgG2b Negative Control:RPE | MCA691PE | F | 100 Tests |
|
Useful Reagents Available
| Description | Product Code | Applications | Pack Size | List Price | Quantity |
|---|---|---|---|---|---|
| Mouse anti Pig CD45 | MCA1222GA | C F IF | 0.1 mg |
|
|
| Mouse anti Pig wCD8 Alpha | MCA1223GA | C F | 0.1 mg |
|
|
| Rat anti Human CD3 | MCA1477 | C F* IF P* WB | 0.2 mg |
|
Product Specific References
References for CD4 Alpha antibody
-
Saalmüller A et al. (2001) Summary of workshop findings for porcine T-lymphocyte-specific monoclonal antibodies.
Vet Immunol Immunopathol. 80 (1-2): 35-52. -
Castellano, G. et al. (2010) Therapeutic targeting of classical and lectin pathways of complement protects from ischemia-reperfusion-induced renal damage.
Am J Pathol. 176: 1648-59. -
Inman, C.F. et al. (2010) Dendritic cells interact with CD4 T cells in intestinal mucosa.
J Leukoc Biol. 88 (3): 571-8. -
Kick AR et al. (2011) Evaluation of peripheral lymphocytes after weaning and vaccination for Mycoplasma hyopneumoniae.
Res Vet Sci. 91 (3): e68-72. -
Kick, A.R. et al. (2012) Effects of stress associated with weaning on the adaptive immune system in pigs.
J Anim Sci. 90: 649-56. -
Goujon, J.M. et al. (2000) Influence of cold-storage conditions on renal function of autotransplanted large pig kidneys.
Kidney Int. 58: 838-50. -
Tambuyzer BR et al. (2012) Osteopontin alters the functional profile of porcine microglia in vitro.
Cell Biol Int. 36 (12): 1233-8. -
Tuchscherer, M. et al. (2012) Effects of inadequate maternal dietary protein:carbohydrate ratios during pregnancy on offspring immunity in pigs.
BMC Vet Res. 8: 232. -
Cao, D. et al. (2010) Synthetic innate defence regulator peptide enhances in vivo immunostimulatory effects of CpG-ODN in newborn piglets.
Vaccine. 28: 6006-13. -
Clapperton, M. et al. (2005) Associations of weight gain and food intake with leukocyte sub-sets in Large White pigs
Livestock Production Science 96: 249-60 -
Clapperton, M. et al. (2005) Innate immune traits differ between Meishan and Large White pigs.
Vet Immunol Immunopathol. 104: 131-44. -
Clapperton, M. et al. (2008) Pig peripheral blood mononuclear leucocyte subsets are heritable and genetically correlated with performance.
Animal. 2: 1575-84. -
Faure, J.P. et al. (2002) Polyethylene glycol reduces early and long-term cold ischemia-reperfusion and renal medulla injury.
J Pharmacol Exp Ther. 2002 Sep;302(3):861-70. -
Faure, J.P. et al. (2004) Evidence for protective roles of polyethylene glycol plus high sodium solution and trimetazidine against consequences of renal medulla ischaemia during cold preservation and reperfusion in a pig kidney model.
Nephrol Dial Transplant. 19: 1742-51. -
Inman, C.F. et al. (2012) Neonatal colonisation expands a specific intestinal antigen-presenting cell subset prior to CD4 T-cell expansion, without altering T-cell repertoire.
PLoS One. 7(3): e33707. -
Kick, A.R. et al. (2012) Effects of stress associated with weaning on the adaptive immune system in pigs.
J Anim Sci. 90: 649-56. -
Langerhuus, S.N. et al. (2010) Brief report: biomarkers of aortic vascular prosthetic graft infection in a porcine model with Staphylococcus aureus.
Eur J Clin Microbiol Infect Dis. 29: 1453-6. -
Lu, X. et al. (2012) Genome-wide association study for T lymphocyte subpopulations in swine.
BMC Genomics. 13: 488. -
Monroy-Salazar, H.G. et al. (2012) Effects of a live yeast dietary supplement on fecal coliform counts and on peripheral blood CD4+ and CD8+ lymphocyte subpopulations in nursery pigs.
J Swine Health Prod 20: 276-282. -
Shi, K. et al. (2008) Changes in peripheral blood leukocyte subpopulations in piglets co-infected experimentally with porcine reproductive and respiratory syndrome virus and porcine circovirus type 2.
Vet Microbiol. 129: 367-77. -
Spreeuwenberg, M.A. et al. (2001) Small intestine epithelial barrier function is compromised in pigs with low feed intake at weaning.
J Nutr. 131: 1520-7. -
Tambuyzer, B.R. et al. (2012) Osteopontin alters the functional profile of porcine microglia in vitro.
Cell Biol Int. 36: 1233-8. -
Zelnickova, P. et al. (2007) Intracellular cytokine detection by flow cytometry in pigs: fixation, permeabilization and cell surface staining.
J Immunol Methods. 327: 18-29. -
Kvist, P.H. et al. (2010) Effect of subcutaneous glucose sensor implantation on skin mRNA expression in pigs.
Diabetes Technol Ther. 12: 791-9. -
Lefevre, E.A. et al. (2012) Immune responses in pigs vaccinated with adjuvanted and non-adjuvanted A(H1N1)pdm/09 influenza vaccines used in human immunization programmes.
PLoS One. 7(3): e32400. -
Akershoek, J.J. et al. (2016) Cell therapy for full-thickness wounds: are fetal dermal cells a potential source?
Cell Tissue Res. 364 (1): 83-94. -
Liu J et al. (2016) The Role of Porcine Monocyte Derived Dendritic Cells (MoDC) in the Inflammation Storm Caused by Streptococcus suis Serotype 2 Infection.
PLoS One. 11 (3): e0151256. -
Liermann, W. et al. (2017) Effects of two commercial diets and technical feed treatment on stomach lesions and immune system of fattening pigs.
J Anim Physiol Anim Nutr (Berl). 101 (5): e414-26. -
Gardner, D.S. et al. (2016) Remote effects of acute kidney injury in a porcine model.
Am J Physiol Renal Physiol. 310 (4): F259-71. -
Hemmink, J.D. et al. (2016) Distinct immune responses and virus shedding in pigs following aerosol, intra-nasal and contact infection with pandemic swine influenza A virus, A(H1N1)09.
Vet Res. 47 (1): 103. -
Dąbrowski, M. et al. (2017) The Effect of Deoxynivalenol on Selected Populations of Immunocompetent Cells in Porcine Blood-A Preliminary Study.
Molecules. 22 (5)Apr 26 [Epub ahead of print]. -
Hsu, W.T. et al. (2013) Prostaglandin E2 potentiates mesenchymal stem cell-induced IL-10+IFN-γ+CD4+ regulatory T cells to control transplant arteriosclerosis.
J Immunol. 190 (5): 2372-80. -
Matsubara, T. et al. (2015) Identification of a CD4 variant in Microminipigs not detectable with available anti-CD4 monoclonal antibodies.
Vet Immunol Immunopathol. 168 (3-4): 176-83. -
Hu, Z. et al. (2019) Genomic variant in porcine TNFRSF1A gene and its effects on TNF signaling pathway in vitro.
Gene. 700: 105-9. -
Fogle, J.E. et al. (2019) Antibiotic Therapy Does Not Alter the Humoral Response to Vaccination for Porcine Circovirus 2 in Weaned Pigs.
Vet Sci. 6(2): 51. -
Forner, R. et al. (2021) Distribution difference of colostrum-derived B and T cells subsets in gilts and sows.
PLoS One. 16 (5): e0249366. -
Christoforidou, Z. et al. (2019) Sexual Dimorphism in Immune Development and in Response to Nutritional Intervention in Neonatal Piglets.
Front Immunol. 10: 2705. -
López, E. et al. (2019) Identification of very early inflammatory markers in a porcine myocardial infarction model.
BMC Vet Res. 15 (1): 91. -
Liu, K.Y. et al. (2021) Fallopian tube stem cell medium of porcine and bovine: In vitro. regenerative effect on maturation and parthenogenesis of porcine oocytes.
Res Vet Sci. 140: 83-90.
Further Reading
-
Piriou-Guzylack, L. (2008) Membrane markers of the immune cells in swine: an update.
Vet Res. 39: 54.
Fluorescent Spectraviewer
Watch the Tool Tutorial Video ▸How to Use the Spectraviewer
Watch the Tool Tutorial Video ▸- Start by selecting the application you are interested in, with the option to select an instrument from the drop down menu or create a customized instrument
- Select the fluorophores or fluorescent proteins you want to include in your panel to check compatibility
- Select the lasers and filters you wish to include
- Select combined or multi-laser view to visualize the spectra
