CD28 antibody | 3D11
Mouse anti Pig CD28
- Product Type
- Monoclonal Antibody
- Clone
- 3D11
- Isotype
- IgG1
- Specificity
- CD28
Antibody Quality and Performance Guarantee
Mouse anti Pig CD28 antibody, clone 3D11(MCA6406) used to evaluate CD28 expression on CD4+ T cells by flow cytometry.
Image caption:
Expression of CD28 in ConA-stimulated and violet proliferation dye-stained CD8+ T cells in the presence of DON and DOM-1. PBMC were cultivated and analyzed by flow cytometry under the conditions described in Figure 2. After gating on lymphocytes and live lymphocytes, CD8+ T-cells were gated within CD3+ T cells and analyzed for expression of CD28 and proliferation. Original flow cytometry data shown on the top of (b) are from one representative animal. CD28 expression was analyzed by the median fluorescence intensity (MFI) in the total population (both gates together indicated by black rectangles), the parental cell generation (gate on the right), and the proliferating cell generations (gate on the left) for CD8+ T cells (b). The boxplots summarize the results from seven animals and present the expression (MFI) of CD28 within total, parental, and proliferating ConA-stimulated CD8+ T cells (b). Different small letters on boxplots indicate significant differences. a–b: p <0.05. When small letters are not displayed above the whisker plots, no significant differences were observed (p >0.05).
From: Vatzia E, Pierron A, Saalmüller A, Mayer E, Gerner W.
Deoxynivalenol Affects Proliferation and Expression of Activation-Related Molecules in Major Porcine T-Cell Subsets.
Toxins (Basel). 2019 Nov 5;11(11):644.
doi: 10.3390/toxins11110644.
This image is from an open access article distributed under terms of a Creative Commons Attribution License.

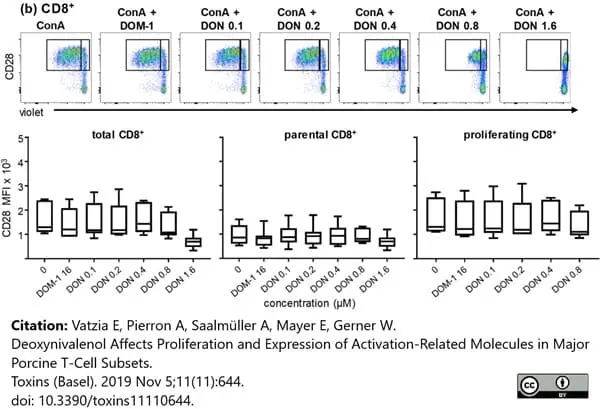

Mouse anti Pig CD28 antibody, clone 3D11(MCA6406) used to evaluate CD28 expression on CD8+ T cells by flow cytometry.
Image caption:
Expression of CD28 in ConA-stimulated and violet proliferation dye-stained CD8+ T cells in the presence of DON and DOM-1. PBMC were cultivated and analyzed by flow cytometry under the conditions described in Figure 2. After gating on lymphocytes and live lymphocytes, CD8+ T-cells were gated within CD3+ T cells and analyzed for expression of CD28 and proliferation. Original flow cytometry data shown on the top of (b) are from one representative animal. CD28 expression was analyzed by the median fluorescence intensity (MFI) in the total population (both gates together indicated by black rectangles), the parental cell generation (gate on the right), and the proliferating cell generations (gate on the left) for CD8+ T cells (b). The boxplots summarize the results from seven animals and present the expression (MFI) of CD28 within total, parental, and proliferating ConA-stimulated CD8+ T cells (b). Different small letters on boxplots indicate significant differences. a–b: p <0.05. When small letters are not displayed above the whisker plots, no significant differences were observed (p >0.05).
From: Vatzia E, Pierron A, Saalmüller A, Mayer E, Gerner W.
Deoxynivalenol Affects Proliferation and Expression of Activation-Related Molecules in Major Porcine T-Cell Subsets.
Toxins (Basel). 2019 Nov 5;11(11):644.
doi: 10.3390/toxins11110644.
This image is from an open access article distributed under terms of a Creative Commons Attribution License.
Filter by Application:
F Reset| Mouse anti Pig CD28 antibody, clone 3D11 recognizes pig CD28. CD28 is a co-stimulatory cell surface molecule expressed by T cell subsets. CD28 is the receptor for CD80 (B7.1) and CD86 (B7.2). Analogous to humans, CD28 is expressed on naive CD4+ and CD8+ T cells and nearly all CD4+ T cells with a central memory phenotype (CD8a+ CD27+ in pigs) with the latter expressing higher levels of CD28 than naive T cells. Approximately 50% of CD4+ effector memory T cells bear CD28; at levels similar to central memory CD4+ T cells. Mouse anti Pig CD28 antibody, clone 3D11, has been shown to be able to detect CD28 on CD8+ and CD4+ αβ T-cells (Uehlein et al. 2021). Among γδ T cells, a small CD2+ subpopulation of phenotypically naive cells express CD28. In vitro, clone 3D11 can co-stimulate porcine T cells, inducing increased proliferation and cytokine secretion. |
- Target Species
- Pig
- Product Form
- Purified IgG - liquid
- Preparation
- Purified IgG prepared by affinity chromatography on Protein A from tissue culture supernatant
- Buffer Solution
- Phosphate buffered saline
- Preservative Stabilisers
- 0.09% Sodium Azide
- Immunogen
- A20J cells expressing pig CD28
- Approx. Protein Concentrations
- IgG concentration 1.0 mg/ml
- Regulatory
- For research purposes only
- Guarantee
- 12 months from date of despatch
This product is shipped at ambient temperature. It is recommended to aliquot and store at -20°C on receipt. When thawed, aliquot the sample as needed. Keep aliquots at 2-8°C for short term use (up to 4 weeks) and store the remaining aliquots at -20°C.
Avoid repeated freezing and thawing as this may denature the antibody. Storage in frost-free freezers is not recommended.
Avoid repeated freezing and thawing as this may denature the antibody. Storage in frost-free freezers is not recommended.
This product has been reported to work in the following applications. This information is derived from testing within our laboratories, peer-reviewed publications or personal communications from the originators. Please refer to references indicated for further information. For general protocol recommendations, please visit the antibody protocols page.
| Application Name | Verified | Min Dilution | Max Dilution |
|---|---|---|---|
| Flow Cytometry |  |
1/25 | 1/50 |
Where this product has not been tested for use in a particular technique this does not necessarily exclude its use in such procedures. Suggested working dilutions are given as a guide only. It is recommended that the user titrates the product for use in their own system using appropriate negative/positive controls.
- Flow Cytometry
- Use 10ul of the suggested working dilution to label 1x106 cells in 100ul
| Description | Product Code | Applications | Pack Size | List Price | Your Price | Quantity | |
|---|---|---|---|---|---|---|---|
| Mouse IgG1 Negative Control | MCA928 | F | 100 Tests |
|
Log in | ||
| List Price | Your Price | ||||||
|
|
Log in | ||||||
| Description | Mouse IgG1 Negative Control | ||||||
Antibody Characterization Reference
-
Uehlein, S. et al. (2021) Human-like Response of Pig T Cells to Superagonistic Anti-CD28 Monoclonal Antibodies.
J Immunol. 207 (10): 2473-2488.
References for CD28 antibody
-
Hoog, A. et al. (2022) Identification of CD4(+) T cells with T follicular helper cell characteristics in the pig.
Dev Comp Immunol. 134: 104462. -
Vatzia, E. et al. (2019) Deoxynivalenol Affects Proliferation and Expression of Activation-Related Molecules in Major Porcine T-Cell Subsets.
Toxins (Basel). 11 (11): 644. -
Li, Y. et al. (2022) Systemic CD4 cytotoxic T cells improve protection against PRRSV-1 transplacental infection.
Front Immunol. 13: 1020227.
- UniProt
- A0A5G2R2W4
MCA6406GA
167329
172530
If you cannot find the batch/lot you are looking for please contact our technical support team for assistance.
