CD163 antibody | rAB04

ISO 9001 Quality Assurance Manufacturing |

Mouse anti Human CD163

Product Type: Monoclonal Antibody
Clone: rAB04
Isotype: IgG1
Specificity: CD163

Quick Links:

Secondary Antibodies
Applications
Storage Information
Negative Controls
Batch/Lot Specific Datasheets

Antibody Quality and Performance Guarantee

Unrivaled Technical Support

Product Code Applications Pack Size List Price Your Price Qty

List Price	Your Price
TZA074GA Datasheet SDS SDS	F	0.1 mg		Log in
	Log in

Anti Human CD163 Antibody, clone rAB04 thumbnail image 1

Anti Human CD163 Antibody, clone rAB04 thumbnail image 2

Anti Human CD163 Antibody, clone rAB04 thumbnail image 3

Anti Human CD163 Antibody, clone rAB04 thumbnail image 4

Anti Human CD163 Antibody, clone rAB04 thumbnail image 5

Anti Human CD163 Antibody, clone rAB04 thumbnail image 6

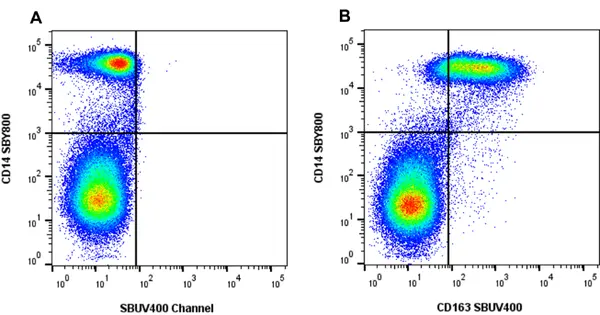

Anti Human CD163 Antibody, clone rAB04 gallery image 1 — Flow cytometry analysis of human PBMCs stained with Anti-Human CD14 SBY800 (MCA1568SBY800) only (Figure A) or with Anti-Human CD14 SBY800 (MCA1568SBY800) and Anti-Human CD163 SBUV400 (**TZA074SBUV400**) (Figure B). Experiments were performed on human PBMCs gated on live, single mononuclear cells.
Data acquired on the **ZE5 Cell Analyzer**.

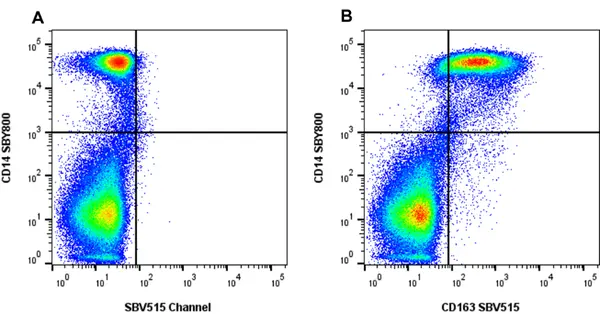

Anti Human CD163 Antibody, clone rAB04 gallery image 2 — Flow cytometry analysis of human PBMCs stained with Anti-Human CD14 SBY800 (MCA1568SBY800) only (Figure A) or with Anti-Human CD14 SBY800 (MCA1568SBY800) and Anti-Human CD163 SBV515 (**TZA074SBV515**) (Figure B). Experiments were performed on PBMCs gated on live, single mononuclear cells.
Data acquired on the **ZE5 Cell Analyzer**.

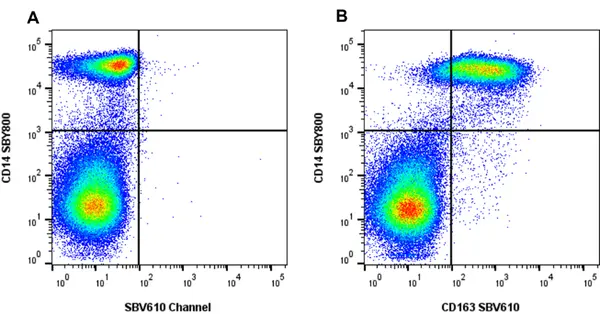

Anti Human CD163 Antibody, clone rAB04 gallery image 3 — Flow cytometry analysis of human PBMCs stained with Anti-Human CD14 SBY800 (MCA1568SBY800) only (Figure A) or with Anti-Human CD14 SBY800 (MCA1568SBY800) and Anti-Human CD163 SBV610 (**TZA074SBV610**) (Figure B). Experiments were performed on PBMCs gated on live, single mononuclear cells.
Data acquired on the **ZE5 Cell Analyzer**.

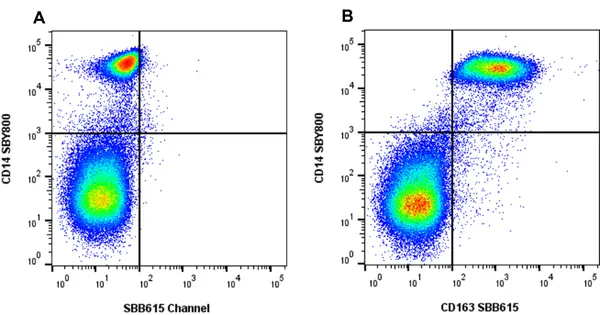

Anti Human CD163 Antibody, clone rAB04 gallery image 4 — Flow cytometry analysis of human PBMCs stained with Anti-Human CD14 SBY800 (MCA1568SBY800) only (Figure A) or with Anti-Human CD14 SBY800 (MCA1568SBY800) and Anti-Human CD163 SBB615 (**TZA074SBB615**) (Figure B). Experiments were performed on PBMCs gated on live, single mononuclear cells.
Data acquired on the **ZE5 Cell Analyzer**.

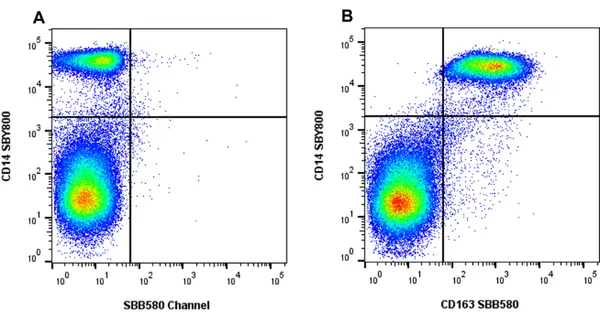

Anti Human CD163 Antibody, clone rAB04 gallery image 5 — Flow cytometry analysis of human PBMCs stained with Anti-Human CD14 SBY800 (MCA1568SBY800) only (Figure A) or with Anti-Human CD14 SBY800 (MCA1568SBY800) and Anti-Human CD163 SBB580 (**TZA074SBB580**) (Figure B). Experiments were performed on PBMCs gated on live, single mononuclear cells.
Data acquired on the **ZE5 Cell Analyzer**.

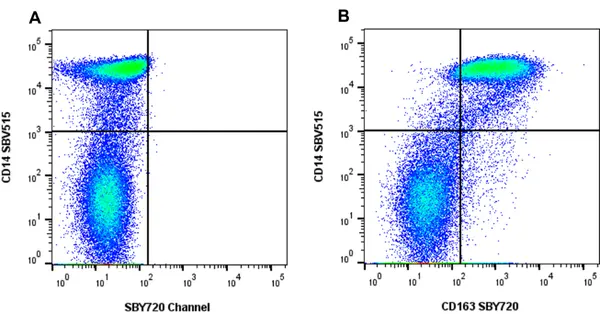

Anti Human CD163 Antibody, clone rAB04 gallery image 6 — Flow cytometry analysis of human PBMCs stained with Anti-Human CD14 SBV515 (MCA1568SBV515) only (Figure A) or with Anti-Human CD14 SBV515 (MCA1568SBV515) and Anti-Human CD163 SBY720 (**TZA074SBY720**) (Figure B). Experiments were performed on PBMCs gated on live, single mononuclear cells.
Data acquired on the **ZE5 Cell Analyzer**.

Filter by Application:

Mouse anti Human CD163 antibody, clone rAB04, is a recombinant monoclonal antibody that recognizes CD163, also known as hemoglobin scavenger receptor or scavenger receptor cysteine-rich type 1 protein M130.

CD163 is a high affinity scavenger receptor for the haptoglobin-hemoglobin (Hp-Hb) complex, expressed by tissue resident macrophages and circulating blood monocytes. It consists of a single transmembrane domain, a short cytoplasmic tail and a large extracellular region containing nine scavenger receptor cysteine-rich (SRCR) domains. CD163 is involved in the removal of the Hp-Hb complex through macrophage endocytosis and therefore aids in protection from free hemoglobin-mediated oxidative damage. A soluble form of CD163 is generated by enzymatic cleavage of membrane-bound CD163 and is thought to have an anti-inflammatory role.

CD163 is considered a classical M2 macrophage marker. It is upregulated when macrophages switch to alternative activated phenotypes in inflammation. The soluble form of CD163 is being investigated as a diagnostic tool for macrophage activation in inflammatory conditions such as atherosclerosis.

Target Species: Human
Product Form: Purified recombinant IgG containing a SpyTag at the C-terminus of the antibody heavy chain – liquid
Preparation: Purified IgG prepared by affinity chromatography on Protein A from tissue culture supernatant
Source: CHO cells
Buffer Solution: Phosphate buffered saline
Preservative Stabilisers: 0.09% Sodium Azide (NaN₃)
Immunogen: Recombinant CD163 Gly46-Ser1050 expressed by mouse myeloma cell line, NS0
Approx. Protein Concentrations: IgG concentration 1.0 mg/ml
Regulatory: For research purposes only
Guarantee: 12 months from date of despatch
Acknowledgements: This product and/or its use is covered by claims of U.S. patents, and/or pending U.S. and non-U.S. patent applications owned by or under license to Bio-Rad Laboratories, Inc. See bio-rad.com/en-us/trademarks for details.

This product is shipped at ambient temperature. It is recommended to aliquot and store at -20°C on receipt. When thawed, aliquot the sample as needed. Keep aliquots at 2-8°C for short term use (up to 4 weeks) and store the remaining aliquots at -20°C.

Avoid repeated freezing and thawing as this may denature the antibody. Storage in frost-free freezers is not recommended.

This product has been reported to work in the following applications. This information is derived from testing within our laboratories, peer-reviewed publications or personal communications from the originators. Please refer to references indicated for further information. For general protocol recommendations, please visit the antibody protocols page.

Application Name	Verified	Min Dilution	Max Dilution
Flow Cytometry

Where this product has not been tested for use in a particular technique this does not necessarily exclude its use in such procedures. Suggested working dilutions are given as a guide only. It is recommended that the user titrates the product for use in their own system using appropriate negative/positive controls.

Flow Cytometry: Use 5μl of the suggested working dilution to label 0.5x10⁶ cells in 100μl. Best practices suggest a 5 min centrifugation at 6,000g prior to sample application.

Description	Product Code	Applications	Pack Size	Your Price
Goat anti Mouse IgG (H/L):Alk. Phos. (Multi Species Adsorbed)	STAR117A	E WB	0.5 mg	Log in
List Price	Your Price
	Log in
Description	Goat anti Mouse IgG (H/L):Alk. Phos. (Multi Species Adsorbed)
Goat anti Mouse IgG (H/L):DyLight®488 (Multi Species Adsorbed)	STAR117D488GA	F IF	0.1 mg	Log in
List Price	Your Price
	Log in
Description	Goat anti Mouse IgG (H/L):DyLight®488 (Multi Species Adsorbed)
Goat anti Mouse IgG (H/L):DyLight®550 (Multi Species Adsorbed)	STAR117D550	F IF WB	0.1 mg	Log in
List Price	Your Price
	Log in
Description	Goat anti Mouse IgG (H/L):DyLight®550 (Multi Species Adsorbed)
Goat anti Mouse IgG (H/L):DyLight®650 (Multi Species Adsorbed)	STAR117D650	F IF	0.1 mg	Log in
List Price	Your Price
	Log in
Description	Goat anti Mouse IgG (H/L):DyLight®650 (Multi Species Adsorbed)
Goat anti Mouse IgG (H/L):DyLight®680 (Multi Species Adsorbed)	STAR117D680GA	F WB	0.1 mg	Log in
List Price	Your Price
	Log in
Description	Goat anti Mouse IgG (H/L):DyLight®680 (Multi Species Adsorbed)
Goat anti Mouse IgG (H/L):DyLight®800 (Multi Species Adsorbed)	STAR117D800GA	F IF WB	0.1 mg	Log in
List Price	Your Price
	Log in
Description	Goat anti Mouse IgG (H/L):DyLight®800 (Multi Species Adsorbed)
Goat anti Mouse IgG (H/L):FITC (Multi Species Adsorbed)	STAR117F	F	0.5 mg	Log in
List Price	Your Price
	Log in
Description	Goat anti Mouse IgG (H/L):FITC (Multi Species Adsorbed)
Goat anti Mouse IgG (H/L):HRP (Multi Species Adsorbed)	STAR117P	C E WB	0.5 mg	Log in
List Price	Your Price
	Log in
Description	Goat anti Mouse IgG (H/L):HRP (Multi Species Adsorbed)
Goat anti Mouse IgG (Fc):FITC	STAR120F	C F	1 mg	Log in
List Price	Your Price
	Log in
Description	Goat anti Mouse IgG (Fc):FITC
Goat anti Mouse IgG (Fc):HRP	STAR120P	E WB	1 mg	Log in
List Price	Your Price
	Log in
Description	Goat anti Mouse IgG (Fc):HRP
Rabbit F(ab')2 anti Mouse IgG:RPE	STAR12A	F	1 ml	Log in
List Price	Your Price
	Log in
Description	Rabbit F(ab')2 anti Mouse IgG:RPE
Rabbit F(ab')2 anti Mouse IgG:HRP (Human Adsorbed)	STAR13B	C E P RE WB	1 mg	Log in
List Price	Your Price
	Log in
Description	Rabbit F(ab')2 anti Mouse IgG:HRP (Human Adsorbed)
Goat anti Mouse IgG:FITC (Rat Adsorbed)	STAR70	F	0.5 mg	Log in
List Price	Your Price
	Log in
Description	Goat anti Mouse IgG:FITC (Rat Adsorbed)
Goat anti Mouse IgG:RPE (Rat Adsorbed)	STAR76	F	1 ml	Log in
List Price	Your Price
	Log in
Description	Goat anti Mouse IgG:RPE (Rat Adsorbed)
Goat anti Mouse IgG:HRP (Rat Adsorbed)	STAR77	C E P	0.5 mg	Log in
List Price	Your Price
	Log in
Description	Goat anti Mouse IgG:HRP (Rat Adsorbed)
Goat anti Mouse IgG/A/M:HRP (Human Adsorbed)	STAR87P	E	1 mg	Log in
List Price	Your Price
	Log in
Description	Goat anti Mouse IgG/A/M:HRP (Human Adsorbed)
Rabbit F(ab')2 anti Mouse IgG:FITC	STAR9B	F	1 mg	Log in
List Price	Your Price
	Log in
Description	Rabbit F(ab')2 anti Mouse IgG:FITC

Description	Product Code	Applications	Pack Size	Your Price
Mouse IgG1 Negative Control	MCA928	F	100 Tests	Log in
List Price	Your Price
	Log in
Description	Mouse IgG1 Negative Control

Synonyms: Hemoglobin Scavenger Receptor
UniProt: Q86VB7
Entrez Gene: CD163
GO Terms: GO:0005515 protein binding; GO:0006953 acute-phase response; GO:0005576 extracellular region; GO:0005044 scavenger receptor activity; GO:0005887 integral to plasma membrane
