CD62P antibody | AK-6
FITC conjugated Mouse anti Human CD62P antibody, clone AK-6 (MCA796F) used to assess activationof CD41 positive platelets by flow cytometry.

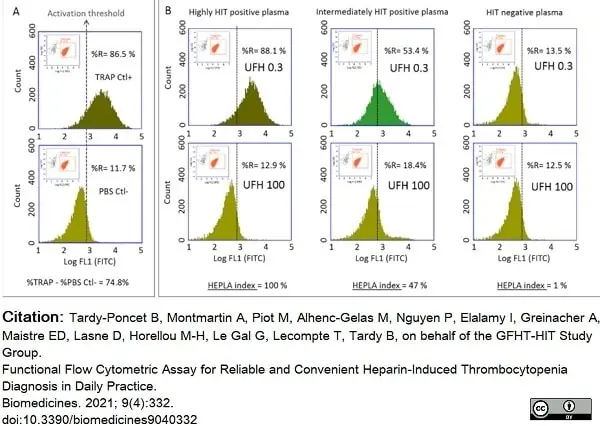

Image caption:
Dot plot: Log SSC (Side Scatter) versus Log FL2 (Filter 2) (in orange). A gate was drawn around CD41+ events, delineating the platelet population. FL1 Histogram: count versus log FL1 (in green). The gate CD41+ was applied to analyze FL1. ‘%R’ represents the percentage of CD-62p positive events. (A) Upper panels, TRAP-activated platelets (TRAP Ctl+); lower panels, resting platelets (PBS Ctl−). A total of 10,000 platelets (CD41+ events) were analyzed in each run and the percentage of activated platelets (CD62p positive events) was evaluated (FL1 histogram). For each series, a cursor indicating the activation threshold was placed at the intersection of the FL1 histograms of the negative control (PBS Ctl−) and the positive control (TRAP Ctl+) and the cut-off was determined. In this example, with resting platelets (PBS Ctl−), we observed 11.7% CD62p-positive events corresponding to spontaneous platelet activation and electronic noise. After platelet activation with TRAP (TRAP Ctl+), we observed 86.5% CD62p-positive events corresponding to maximal platelet activation. (B) Left panels: Platelets activated with a highly HIT positive plasma. We observed 88.1% CD62p-positive events with 0.3 IU/mL. UFH (upper panel) and 12.9% CD62p-positive events with 100 IU/mL UFH (lower panel). The HEPLA index was 100% Middle panels: Platelets activated with intermediately HIT positive plasma. We observed 53.4% CD62p-positive events with 0.3 IU/mL UFH (upper panel) and 18.4% CD62p-positive events with 100 IU/mL UFH (lower panel). The HEPLA index was 47%. Right panels: Platelets incubated with HIT negative plasma. We observed 13.5% CD62p-positive events with 0.3 IU/mL UFH (upper panel) and 12.5% with 100 IU/mL UFH (lower panel). The HEPLA index was 1%. TRAP: Thrombin Receptor Agonist Peptide, PBS: Phosphate-buffered saline, HIT: Heparin-induced thrombocytopenia, UFH: Unfractioned heparin, HEPLA: Heparin Platelet Activation.
From: Tardy-Poncet, B.; Montmartin, A.; Piot, M.; Alhenc-Gelas, M.; Nguyen, P.; Elalamy, I.; Greinacher, A.; Maistre, E.D.; Lasne, D.; Horellou, M.-H.; Le Gal, G.; Lecompte, T.; Tardy, B.; on behalf of the GFHT-HIT Study Group.
Functional Flow Cytometric Assay for Reliable and Convenient Heparin-Induced Thrombocytopenia Diagnosis in Daily Practice.
Biomedicines 2021, 9, 332.
doi: 10.3390/biomedicines9040332
This image is from an open access article distributed under terms of a Creative Commons Attribution License.
Mouse anti Human CD62P:Alexa Fluor® 488
Mouse anti Human CD62P:Alexa Fluor® 647
Mouse anti Human CD62P:Preservative Free
Mouse anti Human CD62P:FITC
Mouse anti Human CD62P:Pacific Blue®
Mouse anti Human CD62P
Mouse anti Human CD62P:RPE
Mouse anti Human CD62P:Alexa Fluor® 700
- Product Type
- Monoclonal Antibody
- Clone
- AK-6
- Isotype
- IgG1
| Product Code | Applications | Pack Size | List Price | Quantity |
|---|---|---|---|---|
| MCA796A488 | F | 100 Tests/1ml |
|
|
| MCA796A647 | F | 100 Tests/1ml |
|
|
| MCA796XZ | C F IF P* WB | 1 mg |
|
|
| MCA796F | F | 0.1 mg |
|
|
| MCA796PB | F | 100 Tests/1ml |
|
|
| MCA796 | C F IF P WB | 0.2 mg |
|
|
| MCA796GA | C F IF P* WB | 0.1 mg |
|
|
| MCA796PE | F | 100 Tests |
|
|
| MCA796A700 | F | 100 Tests/1ml |
|
Mouse anti Human CD62P antibody, clone AK-6 recognizes the CD62P, also known as P-selectin, Granule membrane protein 140, GMP140, Leukocyte-endothelial cell adhesion molecule 3 or Platelet activation dependent granule-external membrane protein. CD62P is a 830 amino acid, including a 41 amino acid signal peptide, ~140 kDa single pass type I transmembrane glycoprotein expressed on activated platelets and endothelial cell
CD62P plays an important role in adhesive processes between leucocytes and endothelial cells. CD62P is a component of the platelet alpha granule and is rapidly translocated to the plasma membrane upon activation (Stenberg et al. 1985).
CD62P plays an important role in adhesive processes between leucocytes and endothelial cells. CD62P is a component of the platelet alpha granule and is rapidly translocated to the plasma membrane upon activation (Stenberg et al. 1985).
Product Details
- Target Species
- Human
- Species Cross-Reactivity
-
Target Species Cross Reactivity Rhesus Monkey - N.B. Antibody reactivity and working conditions may vary between species.
- Product Form
- Purified IgG conjugated to Alexa Fluor® 488 - liquid
- Product Form
- Purified IgG conjugated to Alexa Fluor® 647 - liquid
- Product Form
- Purified IgG - liquid
- Product Form
- Purified IgG conjugated to Fluorescein Isothiocyanate Isomer 1 (FITC) - liquid
- Product Form
- Purified IgG conjugated to Pacific Blue - liquid
- Product Form
- Purified IgG - liquid
- Product Form
- Purified IgG conjugated to R. Phycoerythrin (RPE) - lyophilized
- Product Form
- Purified IgG conjugated to Alexa Fluor 700 - liquid
- Reconstitution
- Reconstitute with 1 ml distilled water
- Preparation
- Purified IgG prepared by affinity chromatography on Protein A from tissue culture supernatant
- Preparation
- Purified IgG prepared by affinity chromatography on Protein A from tissue culture supernatant
- Preparation
- Purified IgG prepared by affinity chromatography on Protein A from tissue culture supernatant
- Preparation
- Purified IgG prepared by affinity chromatography on Protein A from tissue culture supernatant
- Preparation
- Purified IgG prepared by affinity chromatography on Protein A from tissue culture supernatant
- Preparation
- Purified IgG prepared by affinity chromatography on Protein A from tissue culture supernatant
- Preparation
- Purified IgG prepared by affinity chromatography on Protein A from tissue culture supernatant
- Preparation
- Purified IgG prepared by affinity chromatography on Protein A from tissue culture supernatant
- Buffer Solution
- Phosphate buffered saline
- Buffer Solution
- Phosphate buffered saline
- Buffer Solution
- Phosphate buffered saline
- Buffer Solution
- Phosphate buffered saline
- Buffer Solution
- Phosphate buffered saline
- Buffer Solution
- Phosphate buffered saline
- Buffer Solution
- Phosphate buffered saline
- Buffer Solution
- Phosphate buffered saline
- Preservative Stabilisers
0.09% Sodium Azide 1% Bovine Serum Albumin - Preservative Stabilisers
0.09% Sodium Azide 1% Bovine Serum Albumin - Preservative Stabilisers
- None present
- Preservative Stabilisers
0.09% Sodium Azide 1% Bovine Serum Albumin - Preservative Stabilisers
- 0.09% Sodium Azide (NaN3)
1% Bovine Serum Albumin - Preservative Stabilisers
0.09% Sodium Azide - Preservative Stabilisers
0.09% Sodium Azide 1% Bovine Serum Albumin 5% Sucrose - Preservative Stabilisers
- 0.09% Sodium Azide (NaN3)
1% Bovine Serum Albumin - Carrier Free
- Yes
- Carrier Free
- Yes
- Immunogen
- Human platelet membrane glycoproteins.
- Approx. Protein Concentrations
- IgG concentration 0.05 mg/ml
- Approx. Protein Concentrations
- IgG concentration 0.05 mg/ml
- Approx. Protein Concentrations
- IgG concentration 1 mg/ml
- Approx. Protein Concentrations
- IgG concentration 0.1mg/ml
- Approx. Protein Concentrations
- IgG concentration 0.05 mg/ml
- Approx. Protein Concentrations
- IgG concentration 1.0 mg/ml
- Approx. Protein Concentrations
- IgG concentration 0.05 mg/ml
Storage Information
- Storage
- This product is shipped at ambient temperature. It is recommended to aliquot and store at -20°C on receipt. When thawed, aliquot the sample as needed. Keep aliquots at 2-8°C for short term use (up to 4 weeks) and store the remaining aliquots at -20°C.
Avoid repeated freezing and thawing as this may denature the antibody. Storage in frost-free freezers is not recommended. This product is photosensitive and should be protected from light. - Storage
- This product is shipped at ambient temperature. It is recommended to aliquot and store at -20°C on receipt. When thawed, aliquot the sample as needed. Keep aliquots at 2-8°C for short term use (up to 4 weeks) and store the remaining aliquots at -20°C.
Avoid repeated freezing and thawing as this may denature the antibody. Storage in frost-free freezers is not recommended. This product is photosensitive and should be protected from light. - Storage
- Store at -20oC only.
This product should be stored undiluted.
Storage in frost free freezers is not recommended. Avoid repeated freezing and thawing as this may denature the antibody. Should this product contain a precipitate we recommend microcentrifugation before use. - Storage
- This product is shipped at ambient temperature. It is recommended to aliquot and store at -20°C on receipt. When thawed, aliquot the sample as needed. Keep aliquots at 2-8°C for short term use (up to 4 weeks) and store the remaining aliquots at -20°C.
Avoid repeated freezing and thawing as this may denature the antibody. Storage in frost-free freezers is not recommended. This product is photosensitive and should be protected from light. - Storage
- This product is shipped at ambient temperature. It is recommended to aliquot and store at -20°C on receipt. When thawed, aliquot the sample as needed. Keep aliquots at 2-8°C for short term use (up to 4 weeks) and store the remaining aliquots at -20°C.
Avoid repeated freezing and thawing as this may denature the antibody. Storage in frost-free freezers is not recommended. This product is photosensitive and should be protected from light. - Storage
- This product is shipped at ambient temperature. It is recommended to aliquot and store at -20°C on receipt. When thawed, aliquot the sample as needed. Keep aliquots at 2-8°C for short term use (up to 4 weeks) and store the remaining aliquots at -20°C.
Avoid repeated freezing and thawing as this may denature the antibody. Storage in frost-free freezers is not recommended. - Storage
- Prior to reconstitution store at +4oC. Following reconstitution store at +4oC.
DO NOT FREEZE.
This product should be stored undiluted. This product is photosensitive and should be protected from light. Should this product contain a precipitate we recommend microcentrifugation before use. - Storage
- This product is shipped at ambient temperature. It is recommended to aliquot and store at -20°C on receipt. When thawed, aliquot the sample as needed. Keep aliquots at 2-8°C for short term use (up to 4 weeks) and store the remaining aliquots at -20°C.
Avoid repeated freezing and thawing as this may denature the antibody. Storage in frost-free freezers is not recommended. This product is photosensitive and should be protected from light. - Guarantee
- 12 months from date of despatch
- Guarantee
- 12 months from date of despatch
- Guarantee
- 12 months from date of despatch
- Guarantee
- 12 months from date of despatch
- Guarantee
- 12 months from date of despatch
- Guarantee
- 12 months from date of despatch
- Guarantee
- 12 months from date of despatch
- Guarantee
- 12 months from date of despatch
More Information
- UniProt
- P16109
- Entrez Gene
- SELP
- GO Terms
- GO:0001530 lipopolysaccharide binding
- GO:0002576 platelet degranulation
- GO:0005887 integral to plasma membrane
- GO:0005615 extracellular space
- GO:0005624 membrane fraction
- GO:0005625 soluble fraction
- GO:0008201 heparin binding
- GO:0050829 defense response to Gram-negative bacterium
- GO:0009897 external side of plasma membrane
- GO:0010572 positive regulation of platelet activation
- GO:0030168 platelet activation
- GO:0031088 platelet dense granule membrane
- GO:0031092 platelet alpha granule membrane
- GO:0032496 response to lipopolysaccharide
- GO:0033691 sialic acid binding
- GO:0042806 fucose binding
- GO:0043208 glycosphingolipid binding
- GO:0070492 oligosaccharide binding
- Acknowledgements
- This product is provided under an intellectual property licence from Life Technologies Corporation. The transfer of this product is contingent on the buyer using the purchase product solely in research, excluding contract research or any fee for service research, and the buyer must not sell or otherwise transfer this product or its components for (a) diagnostic, therapeutic or prophylactic purposes; (b) testing, analysis or screening services, or information in return for compensation on a per-test basis; (c) manufacturing or quality assurance or quality control, or (d) resale, whether or not resold for use in research. For information on purchasing a license to this product for purposes other than as described above, contact Life Technologies Corporation, 5791 Van Allen Way, Carlsbad CA 92008 USA or outlicensing@thermofisher.com
- Acknowledgements
- This product is provided under an intellectual property licence from Life Technologies Corporation. The transfer of this product is contingent on the buyer using the purchase product solely in research, excluding contract research or any fee for service research, and the buyer must not sell or otherwise transfer this product or its components for (a) diagnostic, therapeutic or prophylactic purposes; (b) testing, analysis or screening services, or information in return for compensation on a per-test basis; (c) manufacturing or quality assurance or quality control, or (d) resale, whether or not resold for use in research. For information on purchasing a license to this product for purposes other than as described above, contact Life Technologies Corporation, 5791 Van Allen Way, Carlsbad CA 92008 USA or outlicensing@thermofisher.com
- Acknowledgements
- This product is provided under an intellectual property licence from Life Technologies Corporation. The transfer of this product is contingent on the buyer using the purchase product solely in research, excluding contract research or any fee for service research, and the buyer must not sell or otherwise transfer this product or its components for (a) diagnostic, therapeutic or prophylactic purposes; (b) testing, analysis or screening services, or information in return for compensation on a per-test basis; (c) manufacturing or quality assurance or quality control, or (d) resale, whether or not resold for use in research. For information on purchasing a license to this product for purposes other than as described above, contact Life Technologies Corporation, 5791 Van Allen Way, Carlsbad CA 92008 USA or outlicensing@thermofisher.com
- Acknowledgements
- This product is provided under an intellectual property licence from Life Technologies Corporation. The transfer of this product is contingent on the buyer using the purchase product solely in research, excluding contract research or any fee for service research, and the buyer must not sell or otherwise transfer this product or its components for (a) diagnostic, therapeutic or prophylactic purposes; (b) testing, analysis or screening services, or information in return for compensation on a per-test basis; (c) manufacturing or quality assurance or quality control, or (d) resale, whether or not resold for use in research. For information on purchasing a license to this product for purposes other than as described above, contact Life Technologies Corporation, 5791 Van Allen Way, Carlsbad CA 92008 USA or outlicensing@thermofisher.com
- Regulatory
- For research purposes only
Applications of CD62P antibody
| Application Name | Verified | Min Dilution | Max Dilution |
|---|---|---|---|
| Flow Cytometry | Neat | 1/10 | |
| Flow Cytometry | Neat | 1/10 | |
| Flow Cytometry | 1/10 | 1/100 | |
| Immunofluorescence | |||
| Immunohistology - Frozen | 1/1000 | 1/5000 | |
| Immunohistology - Paraffin 1 | 1/500 | 1/200 | |
| Western Blotting | |||
| Flow Cytometry | * | ||
| Flow Cytometry | Neat | ||
| Flow Cytometry | 1/10 | 1/100 | |
| Immunofluorescence | |||
| Immunohistology - Frozen | 1/1000 | 1/5000 | |
| Immunohistology - Paraffin 1 | 1/500 | 1/2000 | |
| Western Blotting | |||
| Flow Cytometry | Neat | ||
| Flow Cytometry | Neat |
- 1Staining may be enhanced using Sodium Citrate buffer pH6.0
- 1Staining may be enhanced using Sodium Citrate buffer pH6.0
Where this antibody has not been tested for use in a particular technique this does not necessarily exclude its use in such procedures. Suggested working dilutions are given as a guide only. It is recommended that the user titrates the antibody for use in their own system using appropriate negative/positive controls.
Where this antibody has not been tested for use in a particular technique this does not necessarily exclude its use in such procedures. Suggested working dilutions are given as a guide only. It is recommended that the user titrates the antibody for use in their own system using appropriate negative/positive controls.
Where this antibody has not been tested for use in a particular technique this does not necessarily exclude its use in such procedures. Suggested working dilutions are given as a guide only. It is recommended that the user titrates the antibody for use in their own system using appropriate negative/positive controls.
Where this antibody has not been tested for use in a particular technique this does not necessarily exclude its use in such procedures. Suggested working dilutions are given as a guide only. It is recommended that the user titrates the antibody for use in their own system using appropriate negative/positive controls.
* We recommend that this antibody be carefully titred against any previous batches to enable correct comparisons to be made with earlier results. The suggested working range lies between neat and 1/10.
* We recommend that this antibody be carefully titred against any previous batches to enable correct comparisons to be made with earlier results. The suggested working range lies between neat and 1/10.
Where this antibody has not been tested for use in a particular technique this does not necessarily exclude its use in such procedures. Suggested working dilutions are given as a guide only. It is recommended that the user titrates the antibody for use in their own system using appropriate negative/positive controls
Where this antibody has not been tested for use in a particular technique this does not necessarily exclude its use in such procedures. Suggested working dilutions are given as a guide only. It is recommended that the user titrates the antibody for use in their own system using appropriate negative/positive controls.
Where this antibody has not been tested for use in a particular technique this does not necessarily exclude its use in such procedures. Suggested working dilutions are given as a guide only. It is recommended that the user titrates the antibody for use in their own system using appropriate negative/positive controls.
Where this antibody has not been tested for use in a particular technique this does not necessarily exclude its use in such procedures. Suggested working dilutions are given as a guide only. It is recommended that the user titrates the antibody for use in their own system using appropriate negative/positive controls.
- Flow Cytometry
- Use 10ul of the suggested working dilution to label 106 cells in 100ul.
- Flow Cytometry
- Use 10ul of the suggested working dilution to label 106 cells in 100ul.
- Flow Cytometry
- Use 10ul of the suggested working dilution to label 106 cells in 100ul.
- Flow Cytometry
- Use 10ul of the suggested working dilution to label 106 cells in 100ul.
- Flow Cytometry
- Use 10ul of the suggested working dilution to label 106 cells in 100ul
- Flow Cytometry
- Use 10ul of the suggested working dilution to label 106 cells in 100ul.
- Flow Cytometry
- Use 10ul of the suggested working dilution to label 106 cells in 100ul.
- Flow Cytometry
- Use 10ul of the suggested working dilution to label 106 cells in 100ul
- Immunohistology
- This product does not require antigen retrieval using heat treatment prior to staining of paraffin sections but staining may be enhanced using Sodium Citrate buffer pH6.0
- Histology Positive Control Tissue
- Human Tonsil
- Histology Positive Control Tissue
- Tonsil
Copyright © 2022 Bio-Rad Antibodies (formerly AbD Serotec)
Secondary Antibodies Available
Negative Isotype Controls Available
| Description | Product Code | Applications | Pack Size | List Price | Quantity |
|---|---|---|---|---|---|
| Mouse IgG1 Negative Control:Alexa Fluor® 488 | MCA928A488 | F | 100 Tests/1ml |
|
|
| Mouse IgG1 Negative Control:Alexa Fluor® 647 | MCA928A647 | F | 100 Tests/1ml |
|
|
| Mouse IgG1 Negative Control | MCA928 | F | 100 Tests |
|
|
| Mouse IgG1 Negative Control:FITC | MCA928F | F | 100 Tests |
|
|
| Mouse IgG1 Negative Control:Pacific Blue® | MCA928PB | F | 100 Tests/1ml |
|
|
| Mouse IgG1 Negative Control | MCA928 | F | 100 Tests |
|
|
| Mouse IgG1 Negative Control:RPE | MCA928PE | F | 100 Tests |
|
|
| Mouse IgG1 Negative Control:Alexa Fluor® 700 | MCA928A700 | F | 100 Tests/1ml |
|
Useful Reagents Available
| Description | Product Code | Applications | Pack Size | List Price | Quantity |
|---|---|---|---|---|---|
| Human Seroblock | BUF070A | F | 50 Test | ||
| Human Seroblock | BUF070B | F | 200 Test | ||
| Human Seroblock | BUF070A | F | 50 Test | ||
| Human Seroblock | BUF070B | F | 200 Test | ||
| Human Seroblock | BUF070A | F | 50 Test | ||
| Human Seroblock | BUF070B | F | 200 Test | ||
| Human Seroblock | BUF070A | F | 50 Test | ||
| Human Seroblock | BUF070B | F | 200 Test | ||
| Human Seroblock | BUF070A | F | 50 Test | ||
| Human Seroblock | BUF070B | F | 200 Test | ||
| Human Seroblock | BUF070A | F | 50 Test | ||
| Human Seroblock | BUF070B | F | 200 Test |
Product Specific References
References for CD62P antibody
-
Dunlop, L.C. et al. (1992) Characterization of GMP-140 (P-selectin) as a circulating plasma protein.
J Exp Med. 175 (4): 1147-50. -
Skinner, M.P. et al. (1989) Characterization of human platelet GMP-140 as a heparin-binding protein.
Biochem Biophys Res Commun. 164 (3): 1373-9. -
Skinner, M.P. et al. (1991) GMP-140 binding to neutrophils is inhibited by sulfated glycans.
J Biol Chem. 266 (9): 5371-4. -
Sopper, S. et al. (1997) Lymphocyte subsets and expression of differentiation markers in blood and lymphoid organs of rhesus monkeys.
Cytometry. 29 (4): 351-62. -
Bevilacqua, M.P. & Nelson, R.M. (1993) Selectins.
J Clin Invest. 91 (2): 379-87. -
Roos-Engstrand, E. et al. (2005) Increased expression of p38 MAPK in human bronchial epithelium after lipopolysaccharide exposure.
Eur Respir J. 25 (5): 797-803. -
Kornerup, K.N. et al. (2010) Circulating platelet-neutrophil complexes are important for subsequent neutrophil activation and migration.
J Appl Physiol. 109: 758-67. -
Norling, L.V. et al. (2008) Inhibitory control of endothelial galectin-1 on in vitro and in vivo lymphocyte trafficking.
FASEB J. 22: 682-90. -
Dalli, J. et al. (2008) Annexin 1 mediates the rapid anti-inflammatory effects of neutrophil-derived microparticles.
Blood. 112 (6): 2512-9. -
Wassmer, S.C. at al. (2008) Platelet-induced clumping of Plasmodium falciparum-infected erythrocytes from Malawian patients with cerebral malaria-possible modulation in vivo by thrombocytopenia.
J Infect Dis. 197: 72-8. -
Theoret, J.F. et al. (2001) P-selectin antagonism with recombinant p-selectin glycoprotein ligand-1 (rPSGL-Ig) inhibits circulating activated platelet binding to neutrophils induced by damaged arterial surfaces.
J Pharmacol Exp Ther. 298: 658-64 -
Turner, C.P. et al. (2003) The role of P-selectin in the immune destruction of platelets.
Br J Haematol. 121: 623-31. -
van Nispen tot Pannerden, H. et al. (2010) The platelet interior revisited: electron tomography reveals tubular alpha-granule subtypes.
Blood. 116: 1147-56. -
Knipe, L. et al. (2010) A revised model for the secretion of tPA and cytokines from cultured endothelial cells.
Blood. 116 (12): 2183-91. -
Kitaya, K. & Yasuo, T. (2010) Aberrant expression of selectin E, CXCL1, and CXCL13 in chronic endometritis.
Mod Pathol. 23 (8): 1136-46. -
Xiong, G.M. et al. (2015) Imparting electroactivity to polycaprolactone fibers with heparin-doped polypyrrole: Modulation of hemocompatibility and inflammatory responses.
Acta Biomater. 23: 240-9. -
Liao, Y. et al. (2017) Tailoring of TiO2 films by H2SO4 treatment and UV irradiation to improve anticoagulant ability and endothelial cell compatibility.
Colloids Surf B Biointerfaces. 155: 314-22. -
Christersson, C. et al. (2013) Evaluation of microparticles in whole blood by multicolour flow cytometry assay.
Scand J Clin Lab Invest. 73(3): 229-39. -
Tardy-Poncet, B. et al. (2021) Functional Flow Cytometric Assay for Reliable and Convenient Heparin-Induced Thrombocytopenia Diagnosis in Daily Practice
Biomedicines. 9 (4): 332. -
Cipok, M. et al. (2019) Pathogenic heparin-induced thrombocytopenia and thrombosis (HIT) antibodies determined by rapid functional flow cytometry.
Eur J Haematol. 103 (3): 225-233. -
Jiang, T. et al. (2019) Hyaluronic Acid Nanoparticle Composite Films Confer Favorable Time-Dependent Biofunctions for Vascular Wound Healing.
ACS Biomater Sci Eng. 5 (4): 1833-48.
Fluorescent Spectraviewer
Watch the Tool Tutorial Video ▸How to Use the Spectraviewer
Watch the Tool Tutorial Video ▸- Start by selecting the application you are interested in, with the option to select an instrument from the drop down menu or create a customized instrument
- Select the fluorophores or fluorescent proteins you want to include in your panel to check compatibility
- Select the lasers and filters you wish to include
- Select combined or multi-laser view to visualize the spectra
