CD284 antibody | HTA125

100% Secure


Mouse anti Human CD284:Alexa Fluor® 488

Mouse anti Human CD284:Alexa Fluor® 647

Mouse anti Human CD284:Biotin

Mouse anti Human CD284:FITC

Mouse anti Human CD284:Low Endotoxin

Mouse anti Human CD284

Mouse anti Human CD284:RPE

Product Type
Monoclonal Antibody
Clone
HTA125
Isotype
IgG2a
Product CodeApplicationsDatasheetMSDSPack SizeList PriceQuantity
MCA2061A488T F 25 Tests/0.25ml
MCA2061A488 F 100 Tests/1ml
MCA2061A647T F 25 Tests/0.25ml
MCA2061A647 F 100 Tests/1ml
MCA2061B F 0.1 mg
MCA2061FT F 25 µg
MCA2061F F 0.1 mg
MCA2061EL F FN IP WB 0.5 mg
MCA2061GA F IP WB 0.1 mg
MCA2061 F IP WB 0.2 mg
MCA2061PET F 25 Tests
MCA2061PE F 100 Tests
Mouse anti Human CD284 antibody, clone HTA125 recognizes the human Toll like receptor 4 (TLR4) cell surface antigen.

TLR4, also known as CD284, has been demonstrated to act as a receptor for LPS on human monocytes and macrophages. TLR4 signalling of LPS stimulation requires the presence of the MD-2 molecule.

TLR4 is weakly expressed by resting cells, but is upregulated following stimulation with LPS.

This antibody has been demonstrated to block activation of monocytes with LPS. The use of a preservative free format of Mouse anti Human CD284 antibody, clone HTA125 (MCA2061EL ) is recommended for functional assays.

Product Details

Target Species
Human
Species Cross-Reactivity
Target SpeciesCross Reactivity
Rhesus Monkey
Guinea Pig
Pig
Dog
Bovine
N.B. Antibody reactivity and working conditions may vary between species.
Product Form
Purified IgG conjugated to Alexa Fluor® 488 - liquid
Product Form
Ig Fraction conjugated to Alexa Fluor® 647 - liquid
Product Form
Purified IgG conjugated to Biotin - liquid
Product Form
Purified IgG conjugated to Fluorescein Isothiocyanate Isomer 1 (FITC) - liquid
Product Form
Purified IgG - liquid
Product Form
Purified IgG - liquid
Product Form
Purified IgG conjugated to R. Phycoerythrin (RPE) - lyophilized
Reconstitution
Pack Size: 25 Tests
Reconstitute in 0.25 ml disilled water
Pack Size: 100 Tests
Reconstitute with 1.0 ml distilled water
Preparation
Purified IgG prepared by affinity chromatography on Protein A from tissue culture supernatant
Preparation
Purified IgG prepared by affinity chromatography on Protein A from tissue culture supernatant
Preparation
Purified IgG prepared by affinity chromatography on Protein G from tissue culture supernatant
Preparation
Purified IgG prepared by affinity chromatography on Protein A from tissue culture supernatant
Preparation
Purified IgG prepared by affinity chromatography on Protein G from tissue culture supernatant
Preparation
Purified IgG prepared by affinity chromatography on Protein G from tissue culture supernatant
Preparation
Purified IgG prepared by affinity chromatography on Protein G from tissue culture supernatant
Buffer Solution
Phosphate buffered saline
Buffer Solution
Phosphate buffered saline
Buffer Solution
Phosphate buffered saline
Buffer Solution
Phosphate buffered saline
Buffer Solution
Phosphate buffered saline
Buffer Solution
Phosphate buffered saline
Buffer Solution
Phosphate buffered saline
Preservative Stabilisers
0.09%Sodium Azide
1%Bovine Serum Albumin
Preservative Stabilisers
0.09%Sodium Azide
1%Bovine Serum Albumin
Preservative Stabilisers
0.09%Sodium Azide
1%Bovine Serum Albumin
Preservative Stabilisers
0.09%Sodium Azide
1%Bovine Serum Albumin
Preservative Stabilisers
None present
Preservative Stabilisers
0.09%Sodium Azide
Preservative Stabilisers
0.09%Sodium Azide
1%Bovine Serum Albumin
5%Sucrose
Carrier Free
Yes
Carrier Free
Yes
Immunogen
Ba/F3 cell line expressing TLR4 (CD284).
Approx. Protein Concentrations
IgG concentration 0.05 mg/ml
Approx. Protein Concentrations
IgG concentration 0.05 mg/ml
Approx. Protein Concentrations
IgG concentration 0.1 mg/ml
Approx. Protein Concentrations
IgG concentration 0.1 mg/ml
Approx. Protein Concentrations
IgG concentration 1.0 mg/ml
Approx. Protein Concentrations
IgG concentration 1.0 mg/ml
Fusion Partners
Spleen cells from immunised Balb/c mice were fused with cells of the mouse SP2/0 myeloma cell line.

Storage Information

Storage
Store at +4oC or at -20oC if preferred.

This product should be stored undiluted.

Storage in frost free freezers is not recommended. This product is photosensitive and should be protected from light.

Avoid repeated freezing and thawing as this may denature the antibody. Should this product contain a precipitate we recommend microcentrifugation before use.
Storage
Store at +4oC or at -20oC if preferred.

This product should be stored undiluted.

Storage in frost free freezers is not recommended. This product is photosensitive and should be protected from light.

Avoid repeated freezing and thawing as this may denature the antibody. Should this product contain a precipitate we recommend microcentrifugation before use.
Storage
Store at +4oC or at -20oC if preferred.

This product should be stored undiluted.

Storage in frost-free freezers is not recommended. Avoid repeated freezing and thawing as this may denature the protein. Should this product contain a precipitate we recommend microcentrifugation before use.
Storage
Store at +4oC or at -20oC if preferred.

This product should be stored undiluted.

Storage in frost free freezers is not recommended. This product is photosensitive and should be protected from light.

Avoid repeated freezing and thawing as this may denature the antibody. Should this product contain a precipitate we recommend microcentrifugation before use.
Storage
Store at -20oC only.

This product should be stored undiluted.

Storage in frost free freezers is not recommended. Avoid repeated freezing and thawing as this may denature the protein. Should this product contain a precipitate we recommend microcentrifugation before use.
Storage
Store at +4oC or at -20oC if preferred.

This product should be stored undiluted.

Storage in frost free freezers is not recommended. Avoid repeated freezing and thawing as this may denature the protein. Should this product contain a precipitate we recommend microcentrifugation before use.
Storage
Store at +4oC.

DO NOT FREEZE.

This product should be stored undiluted. This product is photosensitive and should be protected from light. Should this product contain a precipitate we recommend microcentrifugation before use.
Shelf Life
18 months from date of despatch.
Shelf Life
18 months from date of despatch.
Shelf Life
18 months from date of despatch.
Shelf Life
18 months from date of despatch.
Shelf Life
18 months from date of despatch.
Shelf Life
18 months from date of despatch.
Shelf Life
12 months from date of reconstitution.

More Information

UniProt
O00206 Related reagents
Entrez Gene
TLR4 Related reagents
Acknowledgements
This product is provided under an intellectual property licence from Life Technologies Corporation. The transfer of this product is contingent on the buyer using the purchase product solely in research, excluding contract research or any fee for service research, and the buyer must not sell or otherwise transfer this product or its components for (a) diagnostic, therapeutic or prophylactic purposes; (b) testing, analysis or screening services, or information in return for compensation on a per-test basis; (c) manufacturing or quality assurance or quality control, or (d) resale, whether or not resold for use in research. For information on purchasing a license to this product for purposes other than as described above, contact Life Technologies Corporation, 5791 Van Allen Way, Carlsbad CA 92008 USA or outlicensing@thermofisher.com
Acknowledgements
This product is provided under an intellectual property licence from Life Technologies Corporation. The transfer of this product is contingent on the buyer using the purchase product solely in research, excluding contract research or any fee for service research, and the buyer must not sell or otherwise transfer this product or its components for (a) diagnostic, therapeutic or prophylactic purposes; (b) testing, analysis or screening services, or information in return for compensation on a per-test basis; (c) manufacturing or quality assurance or quality control, or (d) resale, whether or not resold for use in research. For information on purchasing a license to this product for purposes other than as described above, contact Life Technologies Corporation, 5791 Van Allen Way, Carlsbad CA 92008 USA or outlicensing@thermofisher.com
Regulatory
For research purposes only

Applications of CD284 antibody

This product has been reported to work in the following applications. This information is derived from testing within our laboratories, peer-reviewed publications or personal communications from the originators. Please refer to references indicated for further information. For general protocol recommendations, please visit the antibody protocols page.
Application Name Verified Min Dilution Max Dilution
Flow Cytometry Neat
Flow Cytometry Neat 1/5
Flow Cytometry
Flow Cytometry Neat
Flow Cytometry 1/10 1/50
Functional Assays
Immunoprecipitation
Western Blotting
Flow Cytometry 1/10 1/50 Pack Size: 0.1 mg
1/25 Pack Size: 0.2 mg
Immunoprecipitation
Western Blotting
Flow Cytometry Neat
Where this antibody has not been tested for use in a particular technique this does not necessarily exclude its use in such procedures. Suggested working dilutions are given as a guide only. It is recommended that the user titrates the antibody for use in their own system using appropriate negative/positive controls.
Where this antibody has not been tested for use in a particular technique this does not necessarily exclude its use in such procedures. Suggested working dilutions are given as a guide only. It is recommended that the user titrates the antibody for use in their own system using appropriate negative/positive controls.
Where this antibody has not been tested for use in a particular technique this does not necessarily exclude its use in such procedures. Suggested working dilutions are given as a guide only. It is recommended that the user titrates the antibody for use in their own system using appropriate negative/positive controls.
Where this antibody has not been tested for use in a particular technique this does not necessarily exclude its use in such procedures. Suggested working dilutions are given as a guide only. It is recommended that the user titrates the antibody for use in their own system using appropriate negative/positive controls.
Where this antibody has not been tested for use in a particular technique this does not necessarily exclude its use in such procedures. Suggested working dilutions are given as a guide only. It is recommended that the user titrates the antibody for use in their own system using appropriate negative/positive controls
Where this antibody has not been tested for use in a particular technique this does not necessarily exclude its use in such procedures. Suggested working dilutions are given as a guide only. It is recommended that the user titrates the antibody for use in their own system using appropriate negative/positive controls.
Where this antibody has not been tested for use in a particular technique this does not necessarily exclude its use in such procedures. Suggested working dilutions are given as a guide only. It is recommended that the user titrates the antibody for use in their own system using appropriate negative/positive controls.
Flow Cytometry
Use 10ul of the suggested working dilution to label 1 X 106 cells in 100ul.
Flow Cytometry
Use 10ul of the suggested working dilution to label 106 cells or 100ul whole blood.
Flow Cytometry
Use 10ul of the suggested working dilution to label 106 cells or cells or 100ul whole blood.
Flow Cytometry
Use 10ul of the suggested working dilution to label 106 cells or 100ul whole blood.
Flow Cytometry
Use 10ul of the suggested working dilution to label 106 cells or 100ul whole blood.
Flow Cytometry
Use 10ul of the suggested working dilution to label 106 cells or 100ul whole blood.
Flow Cytometry
Use 10ul of the suggested working dilution to label 106 cells or 100ul whole blood.

Secondary Antibodies Available

Description Product Code Pack Size Applications List Price Quantity
Human anti Mouse IgG2a:FITC HCA037F 0.1 mg F
Human anti Mouse IgG2a:HRP HCA037P 0.1 mg E
Goat anti Mouse IgG (H/L):Alk. Phos. (Multi Species Adsorbed) STAR117A 0.5 mg E WB
Goat anti Mouse IgG (H/L):DyLight®488 (Multi Species Adsorbed) STAR117D488GA 0.1 mg F IF
Goat anti Mouse IgG (H/L):DyLight®549 (Multi Species Adsorbed) STAR117D549GA 0.1 mg F IF WB
Goat anti Mouse IgG (H/L):DyLight®649 (Multi Species Adsorbed) STAR117D649GA 0.1 mg F IF
Goat anti Mouse IgG (H/L):DyLight®680 (Multi Species Adsorbed) STAR117D680GA 0.1 mg F WB
Goat anti Mouse IgG (H/L):DyLight®800 (Multi Species Adsorbed) STAR117D800GA 0.1 mg F IF WB
Goat anti Mouse IgG (H/L):FITC (Multi Species Adsorbed) STAR117F 0.5 mg F
Goat anti Mouse IgG (H/L):HRP (Multi Species Adsorbed) STAR117P 0.5 mg E WB
Goat anti Mouse IgG (Fc):FITC STAR120F 1 mg C F
Goat anti Mouse IgG (Fc):HRP STAR120P 1 mg E WB
Rabbit F(ab')2 anti Mouse IgG:RPE STAR12A 1 ml F
Rabbit F(ab')2 anti Mouse IgG:HRP (Human Adsorbed) STAR13B 1 mg C E P RE WB
Goat anti Mouse IgG:FITC (Rat Adsorbed) STAR70 0.5 mg F
Goat anti Mouse IgG:RPE (Rat Adsorbed) STAR76 1 ml F
Goat anti Mouse IgG:HRP (Rat Adsorbed) STAR77 0.5 mg C E P
Goat anti Mouse IgG/A/M:Alk. Phos. STAR87A 1 mg C E WB
Goat anti Mouse IgG/A/M:HRP (Human Adsorbed) STAR87P 1 mg E
Rabbit F(ab')2 anti Mouse IgG:Dylight®800 STAR8D800GA 0.1 mg F IF WB
Rabbit F(ab')2 anti Mouse IgG:FITC STAR9B 1 mg F
Human anti Mouse IgG2a:FITC HCA037F 0.1 mg F
Human anti Mouse IgG2a:HRP HCA037P 0.1 mg E
Goat anti Mouse IgG (H/L):Alk. Phos. (Multi Species Adsorbed) STAR117A 0.5 mg E WB
Goat anti Mouse IgG (H/L):DyLight®488 (Multi Species Adsorbed) STAR117D488GA 0.1 mg F IF
Goat anti Mouse IgG (H/L):DyLight®549 (Multi Species Adsorbed) STAR117D549GA 0.1 mg F IF WB
Goat anti Mouse IgG (H/L):DyLight®649 (Multi Species Adsorbed) STAR117D649GA 0.1 mg F IF
Goat anti Mouse IgG (H/L):DyLight®680 (Multi Species Adsorbed) STAR117D680GA 0.1 mg F WB
Goat anti Mouse IgG (H/L):DyLight®800 (Multi Species Adsorbed) STAR117D800GA 0.1 mg F IF WB
Goat anti Mouse IgG (H/L):FITC (Multi Species Adsorbed) STAR117F 0.5 mg F
Goat anti Mouse IgG (H/L):HRP (Multi Species Adsorbed) STAR117P 0.5 mg E WB
Goat anti Mouse IgG (Fc):FITC STAR120F 1 mg C F
Goat anti Mouse IgG (Fc):HRP STAR120P 1 mg E WB
Rabbit F(ab')2 anti Mouse IgG:RPE STAR12A 1 ml F
Rabbit F(ab')2 anti Mouse IgG:HRP (Human Adsorbed) STAR13B 1 mg C E P RE WB
Goat anti Mouse IgG:FITC (Rat Adsorbed) STAR70 0.5 mg F
Goat anti Mouse IgG:RPE (Rat Adsorbed) STAR76 1 ml F
Goat anti Mouse IgG:HRP (Rat Adsorbed) STAR77 0.5 mg C E P
Goat anti Mouse IgG/A/M:Alk. Phos. STAR87A 1 mg C E WB
Goat anti Mouse IgG/A/M:HRP (Human Adsorbed) STAR87P 1 mg E
Rabbit F(ab')2 anti Mouse IgG:Dylight®800 STAR8D800GA 0.1 mg F IF WB
Rabbit F(ab')2 anti Mouse IgG:FITC STAR9B 1 mg F

Negative Isotype Controls Available

Description Product Code Pack Size Applications List Price Quantity
Mouse IgG2a Negative Control:Alexa Fluor® 488 MCA929A488 100 Tests/1ml F
Mouse IgG2a Negative Control:Alexa Fluor® 647 MCA929A647 100 Tests/1ml F
Mouse IgG2a Negative Control:FITC MCA929F 100 Tests F
Mouse IgG2a Negative Control:Low Endotoxin MCA929EL 0.5 mg F
Mouse IgG2a Negative Control MCA929 100 Tests F
Mouse IgG2a Negative Control:RPE MCA929PE 100 Tests F

Useful Reagents Available

Description Product Code Pack Size Applications List Price Quantity
Human Seroblock BUF070A 50 Test F
Human Seroblock BUF070B 200 Test F
Human Seroblock BUF070A 50 Test F
Human Seroblock BUF070B 200 Test F
Human Seroblock BUF070A 50 Test F
Human Seroblock BUF070B 200 Test F
Human Seroblock BUF070A 50 Test F
Human Seroblock BUF070B 200 Test F
Human Seroblock BUF070A 50 Test F
Human Seroblock BUF070B 200 Test F

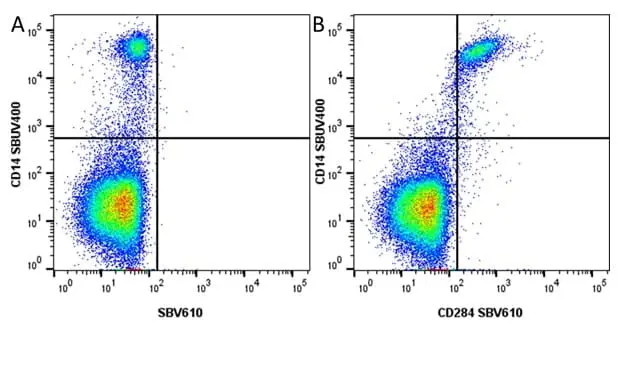

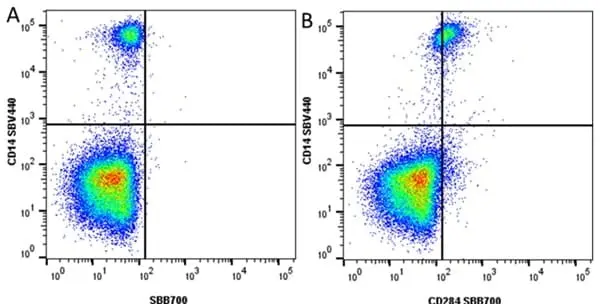

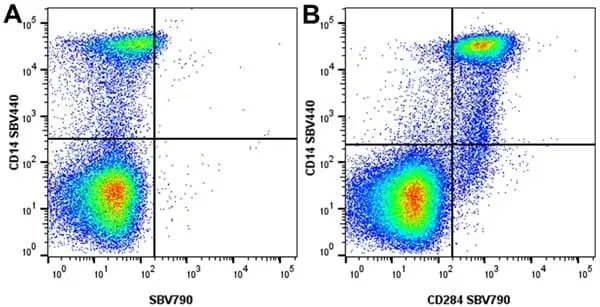

Application Based External Images

Flow Cytometry

Functional Assays

Western Blotting

Product Specific References

References for CD284 antibody

  1. Shimazu, R. et al. (1999) MD-2, a molecule that confers lipopolysaccharide responsiveness on Toll-like receptor 4.
    J Exp Med. 189 (11): 1777-82.
  2. Jiang, Q. et al. (2000) Lipopolysaccharide induces physical proximity between CD14 and toll-like receptor 4 (TLR4) prior to nuclear translocation of NF-kappa B.
    J Immunol. 165 (7): 3541-4.
  3. Yang, S. et al. (2001) Synergistic effect of muramyldipeptide with lipopolysaccharide or lipoteichoic acid to induce inflammatory cytokines in human monocytic cells in culture.
    Infect Immun. 69 (4): 2045-53.
  4. Kawahara T et al. (2001) Type I Helicobacter pylori lipopolysaccharide stimulates toll-like receptor 4 and activates mitogen oxidase 1 in gastric pit cells.
    Infect Immun. 69 (7): 4382-9.
  5. Devaney, J.M. (2003) Neutrophil elastase up-regulates interleukin-8 via toll-like receptor 4.
    FEBS Lett. 544:129-32.
  6. de Kleer, I. (2010) CD30 Discriminates Heat Shock Protein 60-Induced FOXP3+CD4+ T Cells with a Regulatory Phenotype.
    J Immunol. 185(4):2071-9.
  7. Bieback, K. et al. (2002) Hemagglutinin protein of wild-type measles virus activates toll-like receptor 2 signaling.
    J Virol. 76: 8729-36.
  8. Brännström, K. et al. (2009) The Schistosoma mansoni protein Sm16/SmSLP/SmSPO-1 assembles into a nine-subunit oligomer with potential To inhibit Toll-like receptor signaling.
    Infect Immun. 77: 1144-54.
  9. Baumgarten, G. et al. (2001) In vivo expression of proinflammatory mediators in the adult heart after endotoxin administration: the role of toll-like receptor-4.
    J Infect Dis. 183: 1617-24.
  10. Cuschieri, J. et al. (2006) Endotoxin tolerance attenuates LPS-induced TLR4 mobilization to lipid rafts: a condition reversed by PKC activation.
    J Leukoc Biol. 80: 1289-97.
  11. Karlsson, H. et al. (2002) Innate immune responses of human neonatal cells to bacteria from the normal gastrointestinal flora.
    Infect Immun. 70: 6688-96.
  12. Medvedev, A.E. et al. (2001) Induction of tolerance to lipopolysaccharide and mycobacterial components in Chinese hamster ovary/CD14 cells is not affected by overexpression of Toll-like receptors 2 or 4.
    J Immunol. 167: 2257-67.
  13. Pioli, P.A. et al. (2007) Estradiol attenuates lipopolysaccharide-induced CXC chemokine ligand 8 production by human peripheral blood monocytes.
    J Immunol. 179: 6284-90.
  14. Sugawara, S. et al. (2000) Proteolysis of human monocyte CD14 by cysteine proteinases (gingipains) from Porphyromonas gingivalis leading to lipopolysaccharide hyporesponsiveness.
    J Immunol. 165: 411-8.
  15. Lindsay, J.O. et al. (2006) Clinical, microbiological, and immunological effects of fructo-oligosaccharide in patients with Crohn's disease.
    Gut. 55: 348-55.
  16. Komori, H. et al. (2012) α(1)-Acid glycoprotein up-regulates CD163 via TLR4/CD14 protein pathway: possible protection against hemolysis-induced oxidative stress.
    J Biol Chem. 287 (36): 30688-700.
  17. Maiolini, A. et al. (2012) Toll-like receptors 4 and 9 are responsible for the maintenance of the inflammatory reaction in canine steroid-responsive meningitis-arteritis, a large animal model for neutrophilic meningitis.
    J Neuroinflammation. 9: 226.
  18. Sels, J.W. et al. (2012) Fractional flow reserve is not associated with inflammatory markers in patients with stable coronary artery disease.
    PLoS One. 7: e46356.
  19. Prokhorenko, I. et al. (2012) Toll-like receptor 4 in phagocytosis of Escherichia coli by endotoxin-activated human neutrophils in whole blood
    Critical Care 16: P80
  20. Mazzucchelli, I. et al. (2015) Expression and function of toll-like receptors in human circulating endothelial colony forming cells.
    Immunol Lett. 168 (1): 98-104.
  21. Garbe, K. et al. (2012) Plasmacytoid dendritic cells and their Toll-like receptor 9 expression selectively decrease with age.
    Hum Immunol. 73 (5): 493-7.
  22. Zwolak, A. et al. (2016) Metformin Changes the Relationship between Blood Monocyte Toll-Like Receptor 4 Levels and Nonalcoholic Fatty Liver Disease-Ex Vivo Studies.
    PLoS One. 11 (3): e0150233.
  23. Zwolak, A. et al. (2015) Hyperreactivity of Blood Leukocytes in Patients with NAFLD to ex vivo Lipopolysaccharide Treatment Is Modulated by Metformin and Phosphatidylcholine but Not by Alpha Ketoglutarate.
    PLoS One. 10 (12): e0143851.
  24. Xu, H. et al. (2015) Type 3 innate lymphoid cell depletion is mediated by TLRs in lymphoid tissues of simian immunodeficiency virus-infected macaques.
    FASEB J. 29 (12): 5072-80.
  25. Blagitz, M,G. et al. (2015) Expression of CD14 and toll-like receptors 2 and 4 by milk neutrophils in bovine mammary glands infected with Corynebacterium bovis
    Pesquisa Veterinária Brasileira. 35 (1): 1-5.
  26. Huang, D. et al. (2016) Hyperoxia induces inflammation and regulates cytokine production in alveolar epithelium through TLR2/4-NF-κB-dependent mechanism
    Eur Rev Med Pharmacol Sci. 20: 1399-410.
  27. Kyrova, K. et al. (2014) The response of porcine monocyte derived macrophages and dendritic cells to Salmonella typhimurium and lipopolysaccharide.
    BMC Vet Res. 10: 244.
  28. Ibeagha-Awemu, E.M. et al. (2008) Bacterial lipopolysaccharide induces increased expression of toll-like receptor (TLR) 4 and downstream TLR signaling molecules in bovine mammary epithelial cells.
    Vet Res. 39 (2): 11.
  29. Chochi, K. et al. (2008) Helicobacter pylori augments growth of gastric cancers via the lipopolysaccharide-toll-like receptor 4 pathway whereas its lipopolysaccharide attenuates antitumor activities of human mononuclear cells.
    Clin Cancer Res. 14 (10): 2909-17.
  30. Elner, S.G. et al. (2005) TLR4 mediates human retinal pigment epithelial endotoxin binding and cytokine expression.
    Invest Ophthalmol Vis Sci. 46 (12): 4627-33.
