Pembrolizumab antibody | AbD30689_hIgG1
A microtiter plate was coated overnight with various antigens at a concentration of 5 μg/ml. After washing and blocking with PBST+5% BSA, detection was performed using HRP conjugated Human Anti-Pembrolizumab Antibody, clone AbD30689_hIgG1 (HCA298) at a concentration of 2 μg/ml in HISPEC Assay Diluent (BUF049A) followed by QuantaBlu Fluorogenic Peroxidase Substrate.

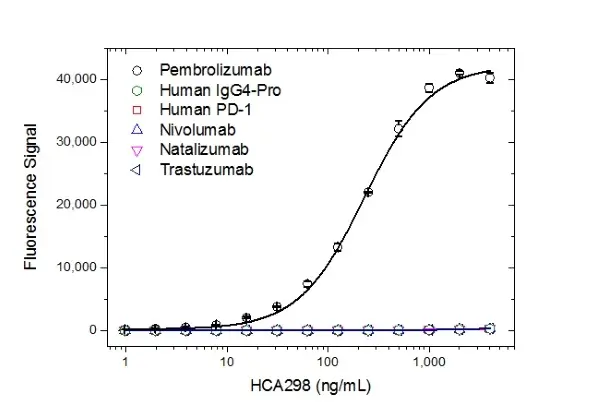

A microtiter plate was coated overnight with pembrolizumab or human IgG4-Pro, human PD-1, nivolumab, natalizumab or trastuzumab at a concentration of 5 µg/ml. After washing and blocking with PBST+5% BSA, detection was performed using HRP conjugated Human Anti-Pembrolizumab Antibody, clone AbD30689_hIgG1 (HCA298) titrated to the given concentrations in HISPEC Assay Diluent (BUF049A) and QuantaBlu Fluorogenic Peroxidase Substrate. Data are shown as the mean of three measurements.
A microtiter plate was coated overnight with pembrolizumab at a concentration of 1 µg/ml. After washing and blocking with PBST+5% BSA, 10% human serum was added spiked with increasing concentrations of Human Anti-Pembrolizumab Antibody, clone AbD30689_hIgG1 (HCA298). Detection was performed using HRP conjugated pembrolizumab followed by QuantaBlu Fluorogenic Peroxidase Substrate. HRP conjugation of the pembrolizumab used in this assay was performed using a LYNX Rapid HRP Conjugation Kit (LNK002P). Data are shown as the mean of three measurements.
A microtiter plate was coated overnight with recombinant human PD-1 at a concentration of 1 µg/ml. After washing and blocking with PBST+5% BSA, a pre-incubated mixture of pembrolizumab (0.3 µg/ml), spiked with increasing concentrations of Human Anti-Pembrolizumab Antibody, clone AbD30689 (HCA296) was added; HCA296 is the same clone as HCA298, but in monovalent Fab format. Free pembrolizumab, still capable of binding to the human PD-1 coated plate, was detected using a Mouse Anti-Human IgG (Fc) CH2 Domain:HRP Antibody (MCA647P) followed by QuantaBlu Fluorogenic Peroxidase Substrate. Data are shown as the mean of three measurements.
Filter by Application:
E ResetHuman anti Pembrolizumab
- Product Type
- Monoclonal Antibody
- Clone
- AbD30689_hIgG1
- Isotype
- IgG1
- Specificity
- Pembrolizumab
Antibody Quality and Performance Guarantee
| Human Anti-Pembrolizumab Antibody, clone AbD30689_hIgG1 is a paratope specific, inhibitory anti-idiotypic antibody that specifically recognizes the free humanized monoclonal antibody pembrolizumab. The antibody does not recognize recombinant human programmed cell death 1 (PD-1) or pembrolizumab in complex with recombinant human PD-1 and can be used to measure free pembrolizumab levels in serum from patients. Clone AbD30689_hIgG1 is a fully human recombinant monoclonal antibody with IgG1 isotype and is suitable as a reference standard in an anti-drug antibody (ADA) assay. Pembrolizumab (Keytruda) is a humanized (IgG4/kappa) antibody with the heavy chain mutation S228P (IgG4-Pro). Pembrolizumab is used to treat inoperable or metastatic melanoma, metastatic non-small cell lung cancer (NSCLC), and as a second-line treatment for head and neck squamous cell carcinoma (HNSCC). For NSCLC, pembrolizumab is a first line treatment if the cancer overexpresses PDL1 and has no mutations in EGFR or ALK. Pembrolizumab is a checkpoint inhibitor and acts as an immunomodulator by blocking ligand activation of PD-1 receptor on T cells, thereby activating T cells to attack the cancer. It blocks PD-1 interaction with PD-1 ligand (PD-L1) and PD-1 ligand 2 (PD-L2). View a summary of all anti-pembrolizumab antibodies |
- Product Form
- Human IgG1 antibody (lambda light chain) selected from the HuCAL phage display library and expressed in a human cell line. This antibody is supplied as a liquid.
- Preparation
- Purified IgG prepared by affinity chromatography on Protein A.
- Source
- HKB-11
- Buffer Solution
- Phosphate buffered saline.
- Preservative Stabilisers
- 0.09% Sodium Azide (NaN3)
- Immunogen
- Pembrolizumab
- Affinity
- The intrinsic affinity of the monovalent form of Human anti Pembrolizumab antibody, clone AbD30689_hIgG1 is KD = 0.6 nM as measured by real time, label free molecular interaction analysis on immobilized Pembrolizumab.
- Approx. Protein Concentrations
- Antibody concentration 0.5 mg/ml.
- Regulatory
- For research purposes only.
- Guarantee
- 12 months from date of despatch.
- Acknowledgements
- This product and/or its use is covered by claims of U.S. patents, and/or pending U.S. and non-U.S. patent applications owned by or under license to Bio-Rad Laboratories, Inc. See bio-rad.com/en-us/trademarks for details.
Keytruda is a trademark of Merck & Co.
This product is shipped at ambient temperature. It is recommended to aliquot and store at -20°C on receipt. When thawed, aliquot the sample as needed. Keep aliquots at 2-8°C for short term use (up to 4 weeks) and store the remaining aliquots at -20°C.
Avoid repeated freezing and thawing as this may denature the antibody. Storage in frost-free freezers is not recommended.
Avoid repeated freezing and thawing as this may denature the antibody. Storage in frost-free freezers is not recommended.
This product has been reported to work in the following applications. This information is derived from testing within our laboratories, peer-reviewed publications or personal communications from the originators. Please refer to references indicated for further information. For general protocol recommendations, please visit the antibody protocols page.
| Application Name | Verified | Min Dilution | Max Dilution |
|---|---|---|---|
| ELISA |  |
Where this product has not been tested for use in a particular technique this does not necessarily exclude its use in such procedures. Suggested working dilutions are given as a guide only. It is recommended that the user titrates the product for use in their own system using appropriate negative/positive controls.
- Technical Advice
- Recommended protocols and further information about HuCAL recombinant antibody technology can be found in the HuCAL Antibodies Technical Manual.
- ELISA
- Human anti Pembrolizumab antibody, clone AbD30689_hIgG1 can be used in a direct or indirect ELISA or as a detection antibody for pembrolizumab. It may also be used as a surrogate positive control to generate a standard curve for an anti-drug antibody assay.
Protocol: anti-drug antibody assay.
| Description | Product Code | Applications | Pack Size | List Price | Your Price | Quantity | |
|---|---|---|---|---|---|---|---|
| Recombinant Human IgG1 Lambda Allotype G1m3 | HCA049 | E | 0.1 mg |
|
Log in | ||
| List Price | Your Price | ||||||
|
|
Log in | ||||||
| Description | Recombinant Human IgG1 Lambda Allotype G1m3 | ||||||
| Description | Product Code | Applications | Pack Size | List Price | Your Price | Quantity | |
|---|---|---|---|---|---|---|---|
| Hispec Assay Diluent | BUF049A | E IY | 50 ml | Log in | |||
| List Price | Your Price | ||||||
| Log in | |||||||
| Description | Hispec Assay Diluent | ||||||
| Human anti Pembrolizumab | HCA296 | E | 0.1 mg |
|
Log in | ||
| List Price | Your Price | ||||||
|
|
Log in | ||||||
| Description | Human anti Pembrolizumab | ||||||
| Human anti Pembrolizumab | HCA297 | E | 0.1 mg |
|
Log in | ||
| List Price | Your Price | ||||||
|
|
Log in | ||||||
| Description | Human anti Pembrolizumab | ||||||
| LYNX Rapid HRP Antibody Conjugation Kit | LNK002P | CJ | 3 Conjugations For 400µg Antibody | Log in | |||
| List Price | Your Price | ||||||
| Log in | |||||||
| Description | LYNX Rapid HRP Antibody Conjugation Kit | ||||||
| Mouse anti Human IgG (Fc) CH2 Domain:HRP | MCA647P | C* E | 0.2 mg |
|
Log in | ||
| List Price | Your Price | ||||||
|
|
Log in | ||||||
| Description | Mouse anti Human IgG (Fc) CH2 Domain:HRP | ||||||
- Licensed Use
- For in vitro research purposes and for commercial applications for the provision of in vitro testing services to support preclinical and clinical drug development. Any re-sale in any form or any other commercial application needs a written agreement with Bio-Rad.
HCA298
148706
161698
164999
If you cannot find the batch/lot you are looking for please contact our technical support team for assistance.
View more products with Pembrolizumab specificity
Please Note: All Products are "FOR RESEARCH PURPOSES ONLY"
