Dupilumab antibody | AbD48337
A microtiter plate was coated overnight with various antigens at a concentration of 5 μg/ml. After washing and blocking with PBST + 5% BSA, the dupilumab/IL-4Rα complex was formed by adding dupilumab at the concentration of 5 μg/ml to wells coated with IL-4Rα. Detection was performed using Human Anti-Dupilumab (Drug/Target complex) Antibody, clone AbD48337ad (TZA054) at a concentration of 2 μg/ml, followed by a an HRP conjugated anti-DYKDDDDK tag antibody in HISPEC Assay Diluent (BUF049A) and QuantaBlu Fluorogenic Peroxidase Substrate.

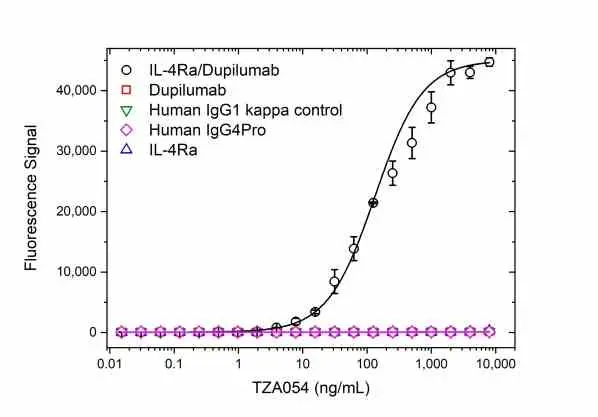

A microtiter plate was coated overnight with IL-4Rα, dupilumab, human IgG1 kappa or human IgG4Pro at a concentration of 5 µg/ml. After washing and blocking with PBST + 5% BSA, the dupilumab/IL-4Rα complex was formed by adding 5 µg/ml dupilumab to the wells coated with IL-4Rα. Detection was performed using Human Anti-Dupilumab (Drug/Target complex) Antibody, clone AbD48337ad (TZA054) titrated to the given concentrations in PBST, followed by a an HRP conjugated anti-DYKDDDDK tag antibody in HISPEC Assay Diluent (BUF049A) and QuantaBlu Fluorogenic Peroxidase Substrate. Data are shown as the mean of three measurements.
A microtiter plate was coated overnight with human IL-4Rα at a concentration of 5 µg/ml. After washing and blocking with PBST + 5% BSA, 10% human serum was added spiked with increasing concentrations of dupilumab. Detection was performed using Human Anti-Dupilumab (Drug/Target complex) Antibody, clone AbD48337ad (TZA054) at a concentration of 0.5 mg/ml in PBST, followed by a an HRP conjugated anti-DYKDDDDK tag antibodyin HISPEC Assay Diluent (BUF049A) and QuantaBlu Fluorogenic Peroxidase Substrate. Data are shown as the mean of three measurements.
Human anti Dupilumab (Drug/Target Complex)
- Product Type
- Monoclonal Antibody
- Clone
- AbD48337
- Isotype
- Fab antibody
- Specificity
- Dupilumab
- Region
- DRUG/TARGET COMPLEX
Antibody Quality and Performance Guarantee
TZA054
| Human Anti-Dupilumab (Drug/Target Complex) Antibody, clone AbD48337 recognizes the monoclonal antibody drug dupilumab when in complex with its target, the Interleukin-4 Receptor alpha (IL-4Rα). It does not recognize free dupilumab or unbound IL-4Rα. It can be used to measure levels of dupilumab in patient samples. Clone AbD48337 is a monovalent Fab format antibody that can be used to develop a pharmacokinetic (PK) antigen capture assay to measure free dupilumab captured via immobilized IL-4Rα. It is tagged with a SpyTag2 at the C-terminus of the Fab heavy chain, enabling the user to couple it to a SpyCatcher reagent for conversion to alternative formats in less than one hour. View a summary of SpyCatcher products Dupilumab is a fully human monoclonal antibody of the IgG4 subclass that binds to the interleukin-4 subunit α (IL-4Rα) receptor, inhibiting both IL‐4 and IL-13 receptors and blocking the receptor signaling pathways. Dupilumab inhibits the signaling of interleukins that induce inflammatory and immunological reactions in several atopic or allergic conditions, such as eczema, allergic reaction, and rhinosinusitis. View a summary of all anti-dupilumab antibodies. |
- Product Form
- A monovalent human recombinant Fab (kappa light chain) selected from the HuCAL® phage display library, expressed in a proprietary E. coli strain. The antibody is tagged with a DYKDDDDK tag, a SpyTag version 2 (VPTIVMVDAYKRYK) and a His6-tag (HHHHHH) at the C-terminus of the antibody heavy chain. This antibody is supplied as a liquid.
- Preparation
- Metal chelate affinity chromatography
- Source
- E.coli
- Buffer Solution
- Phosphate buffered saline
- Preservative Stabilisers
- 0.0095% MIT
- Immunogen
- Dupilumab/IL-4Rα complex
- Affinity
- The monovalent intrinsic affinity of AbD48337ad was measured as KD = 2 nM by real time, label free molecular interaction analysis on immobilized IL-4Rα/dupilumab complex.
- Approx. Protein Concentrations
- Antibody concentration 0.5 mg/ml
- Regulatory
- For research purposes only
- Guarantee
- 12 months from date of despatch
- Acknowledgements
- This product and/or its use is covered by claims of U.S. patents, and/or pending U.S. and non-U.S. patent applications owned by or under license to Bio-Rad Laboratories, Inc. See bio-rad.com/en-us/trademarks for details.
His-tag is a registered trademark of EMD Biosciences.
Dupixent is a trademark of Regeneron Pharmaceuticals, Sanofi-Aventis. - Licensed Use
- For in vitro research purposes and for commercial applications for the provision of in vitro testing services to support preclinical and clinical drug development. Any re-sale in any form or any other commercial application needs a written agreement with Bio-Rad.
This product is shipped at ambient temperature. It is recommended to aliquot and store at -20°C on receipt. When thawed, aliquot the sample as needed. Keep aliquots at 2-8°C for short term use (up to 4 weeks) and store the remaining aliquots at -20°C.
Avoid repeated freezing and thawing as this may denature the antibody. Storage in frost-free freezers is not recommended.
Avoid repeated freezing and thawing as this may denature the antibody. Storage in frost-free freezers is not recommended.
This product has been reported to work in the following applications. This information is derived from testing within our laboratories, peer-reviewed publications or personal communications from the originators. Please refer to references indicated for further information. For general protocol recommendations, please visit the antibody protocols page.
| Application Name | Verified | Min Dilution | Max Dilution |
|---|---|---|---|
| ELISA |  |
Where this product has not been tested for use in a particular technique this does not necessarily exclude its use in such procedures. Suggested working dilutions are given as a guide only. It is recommended that the user titrates the product for use in their own system using appropriate negative/positive controls.
- Technical Advice
- Recommended protocols for coupling a Fab antibody with a SpyTag to a SpyCatcher can be found at SpyTag and SpyCatcher Products, and further information about HuCAL recombinant antibody technology can be found in the HuCAL Antibodies Technical Manual
- ELISA
- Clone AbD48337ad may be used in an indirect ELISA to detect the IL-4Rα/dupilumab complex or to detect dupilumab bound to immobilized IL-4Rα.
