Ixekizumab antibody | AbD60557
Human anti Ixekizumab
- Product Type
- Monoclonal Antibody
- Clone
- AbD60557
- Isotype
- Fab antibody
- Specificity
- Ixekizumab
Antibody Quality and Performance Guarantee
A microtiter plate was coated overnight with various antigens at a concentration of 5 μg/ml. After washing and blocking with PBST + 5% BSA, detection was performed using Human Anti-Ixekizumab Antibody, clone AbD60557ad (TZA0106) at a concentration of 2 μg/ml followed by HRP conjugated Anti-DYKDDDDK Tag Antibody in HISPEC Assay Diluent (BUF049A) and QuantaBlu fluorogenic peroxidase substrate.

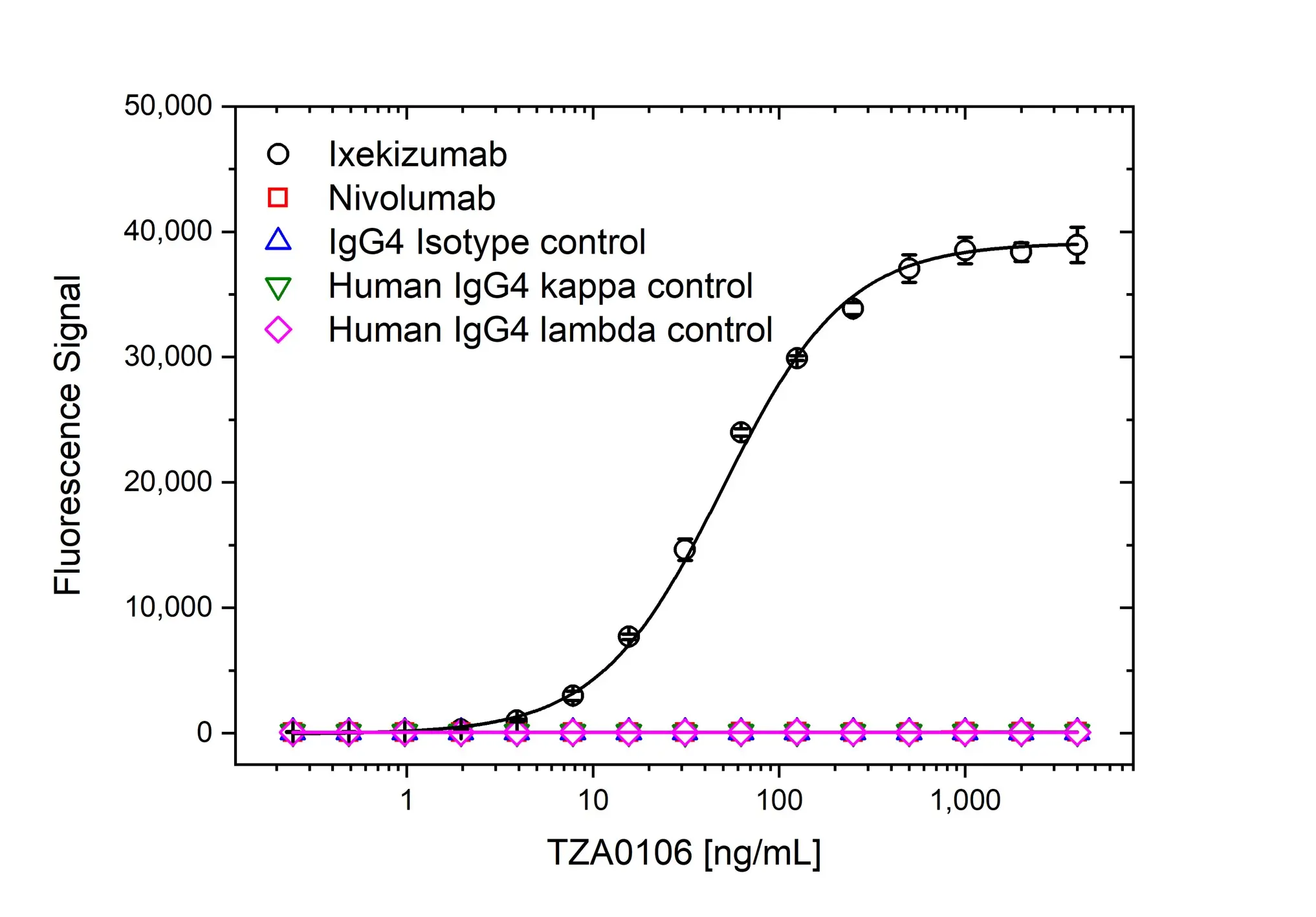

A microtiter plate was coated overnight with ixekizumab, nivolumab, IgG4 isotype control, human IgG4 kappa control and human IgG4 lambda control at a concentration of 5 µg/ml. After washing and blocking with PBST + 5% BSA, detection was performed using Human Anti-Ixekizumab Antibody, clone AbD60557ad (TZA0106) titrated to the given concentrations in PBST followed by an HRP conjugated Anti-DYKDDDDK tag Antibody in HISPEC diluent (BUF049A) and QuantaBlu Fluorogenic Peroxidase Substrate. Data for ixekizumab are shown as the mean of three measurements.

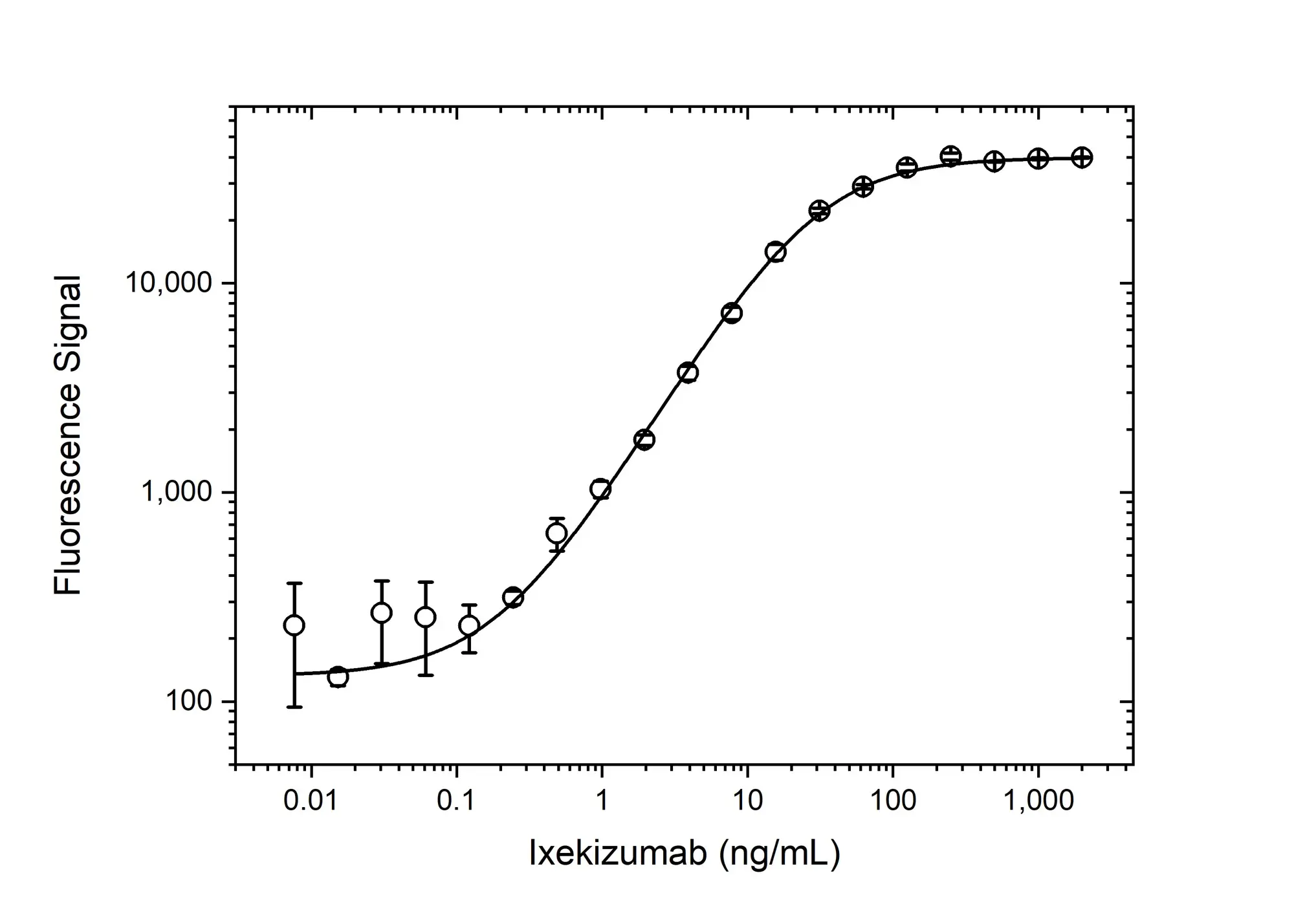

A microtiter plate was coated overnight with Human Anti-Ixekizumab Antibody, clone AbD60570ad (TZA0105) at a concentration of 1 µg/ml. After washing and blocking with PBST + 5% BSA, 10% human serum was added spiked with increasing concentrations of ixekizumab. Detection was performed using HRP conjugated Human Anti-Ixekizumab Antibody, clone AbD60557pap (TZA0106P) at a concentration of 0.5 µg/mL in HISPEC Assay Diluent (BUF049A) and QuantaBlu fluorogenic peroxidase substrate. Data are shown as the mean of three measurements.

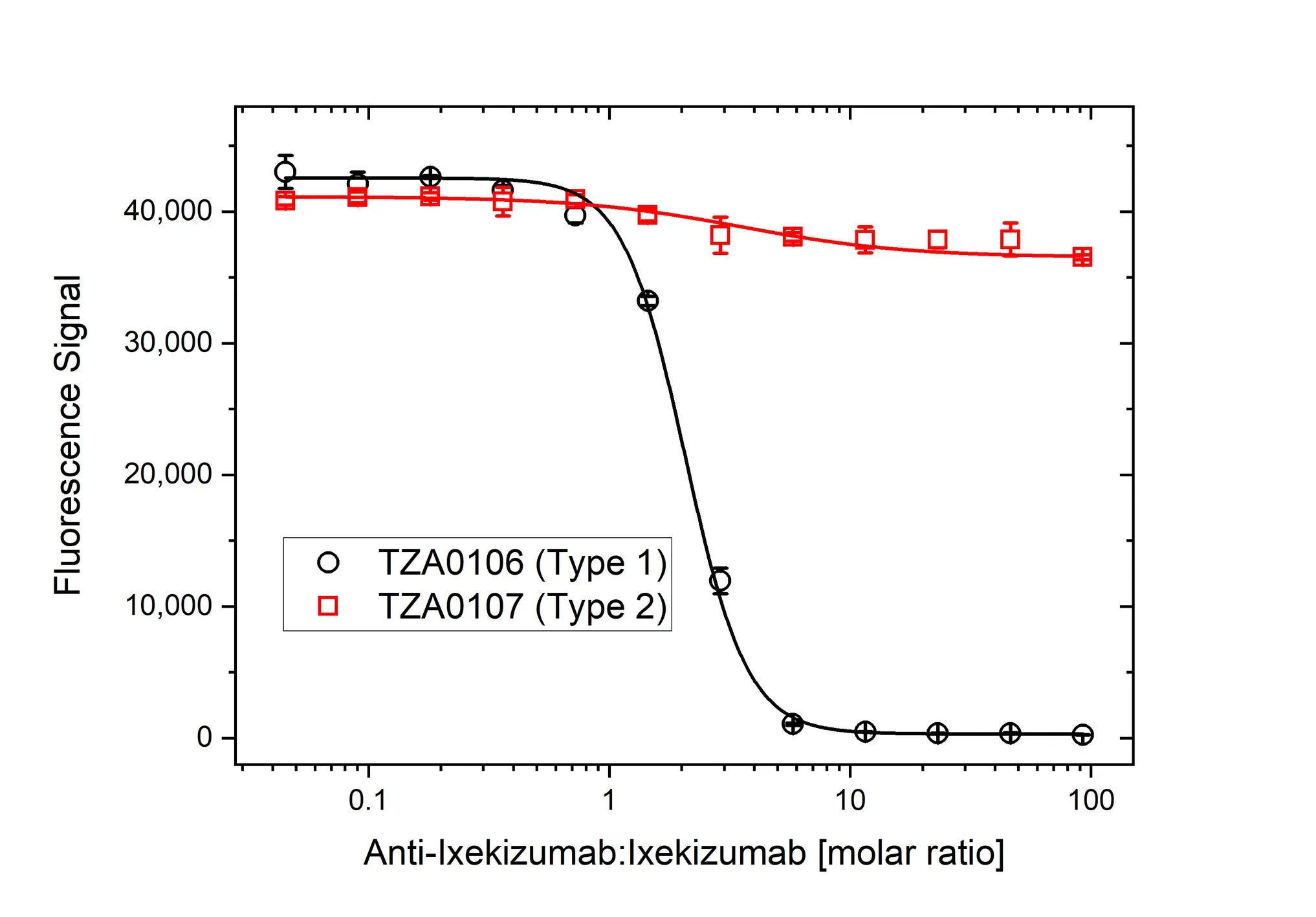

A microtiter plate was coated overnight with recombinant human IL-17A at a concentration of 1 µg/ml. After washing and blocking with PBST + 5% BSA, a pre-incubated mixture of ixekizumab (0.15 µg/ml) plus increasing concentrations of Human Anti-Ixekizumab Antibody, clone AbD60557ad (TZA0106) was added. Free ixekizumab, still capable of binding to the human IL-17A coated plate was detected using HRP conjugated Mouse Anti-Human IgG (Fc) CH2 Domain Antibody (MCA647P) followed by QuantaBlu Fluorogenic Peroxidase Substrate. The non-inhibitory Human Anti-Ixekizumab Antibody, clone AbD60554ad (TZA0107) was used as a negative control. Data are shown as the mean of three measurements.
Filter by Application:
E Reset| Human Anti-Ixekizumab Antibody, clone AbD60557 is a paratope specific, inhibitory, anti-idiotypic antibody (Type 1) that specifically recognizes the free human monoclonal antibody drug ixekizumab, and its biosimilar products. It does not recognize the drug target, human Interleukin 17 (IL-17A), nor ixekizumab in complex with IL-17A. This antibody can be used to measure free ixekizumab levels in serum from patients. Clone AbD60557 is available as a monovalent Fab antibody incorporating a SpyTag at the C-terminus end of the antibody heavy chain for conversion by the end user into alternative formats using any of the SpyCatchers available in our catalog under product code TZA0106. It is also available as a bivalent Fab antibody already conjugated to HRP via coupling to the HRP conjugated BiSpyCatcher2 (TZC002P) for use in direct ELISA under product code TZA0106P. A pair of anti-ixekizumab antibodies can be used to develop a pharmacokinetic (PK) bridging assay to measure free drug; clone AbD60557 is recommended as a detection antibody, paired with Human Anti-Ixekizumab Antibody, clone AbD60570ad (TZA0105) as the capture reagent. Ixekizumab (trade name Taltz) is a humanized monoclonal antibody of the IgG4/kappa isotype that binds to interleukin 17 (IL-17A), a pro-inflammatory cytokine, and blocks its action. Blocking its effect is beneficial for use in inflammatory conditions. Ixekizumab is indicated for the treatment of moderate-to-severe plaque psoriasis and as a second-line therapy for active psoriatic arthritis. View a summary of all anti-ixekizumab antibodies |
- Product Form
- A monovalent human recombinant Fab (kappa light chain) selected from the HuCAL phage display library and expressed in a proprietary E. coli. strain. The antibody is tagged with a DYKDDDDK tag, a SpyTag version 2 (VPTIVMVDAYKRYK) and a His6-tag (HHHHHH) at the C-terminus of the antibody heavy chain. This antibody is supplied as a liquid.
- Preparation
- Metal chelate affinity chromatography
- Source
- E.coli
- Buffer Solution
- Phosphate buffered saline
- Preservative Stabilisers
- 0.0095% MIT
- Immunogen
- Ixekizumab
- Affinity
- The monovalent intrinsic affinity of Human anti-Ixekizumab Antibody, clone AbD60557ad was measured as KD = 0.1 nM by real time, label-free molecular interaction analysis on immobilized ixekizumab.
- Approx. Protein Concentrations
- Antibody concentration 0.5 mg/ml
- Regulatory
- For research purposes only
- Guarantee
- 12 months from date of despatch
- Acknowledgements
- This product and/or its use is covered by claims of U.S. patents, and/or pending U.S. and non-U.S. patent applications owned by or under license to Bio-Rad Laboratories, Inc. See bio-rad.com/en-us/trademarks for details.
Taltz is a registered trademark of Eli Lily. - Licensed Use
- For in vitro. research purposes and for commercial applications for the provision of in vitro testing services to support preclinical and clinical drug development. Any re-sale in any form or any other commercial application needs a written agreement with Bio-Rad.
This product is shipped at ambient temperature. It is recommended to aliquot and store at -20°C on receipt. When thawed, aliquot the sample as needed. Keep aliquots at 2-8°C for short term use (up to 4 weeks) and store the remaining aliquots at -20°C.
Avoid repeated freezing and thawing as this may denature the antibody. Storage in frost-free freezers is not recommended.
Avoid repeated freezing and thawing as this may denature the antibody. Storage in frost-free freezers is not recommended.
This product has been reported to work in the following applications. This information is derived from testing within our laboratories, peer-reviewed publications or personal communications from the originators. Please refer to references indicated for further information. For general protocol recommendations, please visit the antibody protocols page.
| Application Name | Verified | Min Dilution | Max Dilution |
|---|---|---|---|
| ELISA |  |
Where this product has not been tested for use in a particular technique this does not necessarily exclude its use in such procedures. Suggested working dilutions are given as a guide only. It is recommended that the user titrates the product for use in their own system using appropriate negative/positive controls.
- Technical Advice
- Recommended protocols for coupling a Fab antibody with a SpyTag to a SpyCatcher can be found at SpyTag and SpyCatcher Products, and further information about HuCAL recombinant antibody technology can be found in the HuCAL Antibodies Technical Manual.
- ELISA
- Clone AbD60557ad can be used in indirect ELISA to detect ixekizumab. It can also be used as a detection antibody to develop a pharmacokinetic (PK) bridging ELISA for risankizumab, together with TZA0105 as the capture reagent. Note that both TZA0105 (capture) and TZA0106 (detection) contain the same peptide tags. Therefore, using anti-tag antibodies for detecting TZA0106 is not possible.
Protocol: PK bridging ELISA
