Eculizumab antibody | AbD32334
A microtiter plate was coated overnight with various antigens at a concentration of 5 μg/ml. After washing and blocking with PBST + 5% BSA, detection was performed using Human Anti-Eculizumab (Drug/Target Complex) Antibody, clone AbD32334 (HCA339) at a concentration of 2 μg/ml. Detection was performed using an HRP-conjugated anti-DYKDDDDK tag antibody in HISPEC Assay Diluent (BUF049A) and QuantaBlu Fluorogenic Peroxidase Substrate.

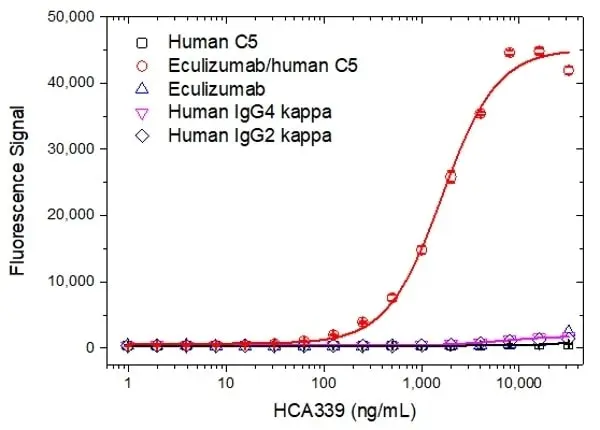

A microtiter plate was coated overnight with human C5, eculizumab (MCA6145), human IgG4 kappa control or human IgG2 kappa control at a concentration of 5 µg/ml. After washing and blocking with PBST + 5% BSA, the eculizumab/C5 complex was formed by adding human C5 at a concentration of 2 µg/ml to the wells coated with eculizumab (MCA6145). Detection was performed using Human Anti-Eculizumab (Drug/Target Complex) Antibody, clone AbD32334 (HCA339) titrated to the given concentrations in PBST followed by an HRP conjugated anti-DYKDDDDK tag antibody in HISPEC Assay Diluent (BUF049A) and QuantaBlu Fluorogenic Peroxidase Substrate. Data for C5 and eculizumab/C5 are shown as the mean of three measurements.
A microtiter plate was coated overnight with Human Anti-Eculizumab (Drug/Target Complex) Antibody, clone AbD32334 (HCA339) at a concentration of 5 µg/ml. After washing and blocking with PBST + 5% BSA, a pre-incubated mixture of human C5 (provided in 20% human serum) plus increasing concentrations of eculizumab (MCA6145) was added. Detection was performed using HRP conjugated Human Anti-Human C5 Antibody, clone AbD36700pap (TZA034P) at a concentration of 0.5 µg/ml in HISPEC Assay Diluent (BUF049A) and QuantaBlu Fluorogenic Peroxidase Substrate. Data are shown as the mean of three measurements.
Human anti Eculizumab (Drug/Target Complex)
- Product Type
- Monoclonal Antibody
- Clone
- AbD32334
- Isotype
- HuCAL Fab monovalent
- Specificity
- Eculizumab
- Region
- DRUG/TARGET COMPLEX
Antibody Quality and Performance Guarantee
| Human Anti-Eculizumab (Drug/Target Complex) Antibody, clone AbD32334 specifically recognizes the antibody drug eculizumab when in complex with its target, the human complement factor 5 (C5). It does not recognize free eculizumab or unbound C5. It can be used to measure levels of eculizumab and its biosimilars in patient samples. Clone AbD32334 is a complex specific, non-inhibitory Fab monovalent antibody that can be used as a capture antibody for the development of a pharmacokinetic (PK) assay to measure levels of eculizumab/C5 complex in patient serum, together with the Human Anti-C5 Antibody, clone AbD36700 (TZA034) as the detection antibody. Eculizumab (Soliris) is a humanized IgG2/4 kappa antibody. The heavy chains are comprised of human IgG2 sequences in CH1, the hinge and the adjacent portion CH2, and human IgG4 sequences in the remaining part of CH2 and CH3. The drug is used to treat paroxysmal nocturnal hemoglobinuria (PNH), a rare acquired life-threatening disease of the blood characterized by destruction of red blood cells by the complement system. It also has approval as an orphan drug for treatment of atypical hemolytic uremic syndrome (aHUS). Eculizumab specifically binds to the terminal complement component 5 (C5) and inhibits the cleavage of C5 to C5a and C5b by the C5 convertase, which prevents the generation of the terminal complement complex C5b-9. Both C5a and C5b-9 cause the terminal complement-mediated events that are characteristic of PNH and aHUS. A 1:1 molar ratio of eculizumab to C5 is sufficient for C5 inhibition. View a summary of all anti-eculizumab antibodies |
|
- Product Form
- A monovalent human recombinant Fab (lambda light chain) selected from the HuCAL phage display library, expressed in E. coli. The antibody is tagged with a DYKDDDDK tag and a His6-tag (HHHHHH). This antibody is supplied as a liquid.
- Preparation
- Metal chelate affinity chromatography
- Source
- E.coli
- Buffer Solution
- Phosphate buffered saline
- Preservative Stabilisers
- 0.09% Sodium Azide (NaN3)
- Immunogen
- Eculizumab/C5 complex
- Affinity
- The intrinsic affinity of the monovalent form of Human Anti Eculizumab (Drug/Target Complex) Antibody, clone AbD32334 is KD = 57 nM as measured by real time, label free molecular interaction analysis on immobilized eculizumab in complex with human complement C5.
- Approx. Protein Concentrations
- Antibody concentration 0.5 mg/ml
- Regulatory
- For research purposes only
- Guarantee
- 12 months from date of despatch
- Acknowledgements
- This product and/or its use is covered by claims of U.S. patents, and/or pending U.S. and non-U.S. patent applications owned by or under license to Bio-Rad Laboratories, Inc. See bio-rad.com/en-us/trademarks for details.
His-tag is a trademark of EMD Biosciences.
Soliris is a trademark of Alexion Pharmaceuticals, Inc. - Licensed Use
- For in vitro research purposes and for commercial applications for the provision of in vitro testing services to support preclinical and clinical drug development. Any re-sale in any form or any other commercial application needs a written agreement with Bio-Rad.
This product is shipped at ambient temperature. It is recommended to aliquot and store at -20°C on receipt. When thawed, aliquot the sample as needed. Keep aliquots at 2-8°C for short term use (up to 4 weeks) and store the remaining aliquots at -20°C.
Avoid repeated freezing and thawing as this may denature the antibody. Storage in frost-free freezers is not recommended.
Avoid repeated freezing and thawing as this may denature the antibody. Storage in frost-free freezers is not recommended.
This product has been reported to work in the following applications. This information is derived from testing within our laboratories, peer-reviewed publications or personal communications from the originators. Please refer to references indicated for further information. For general protocol recommendations, please visit the antibody protocols page.
| Application Name | Verified | Min Dilution | Max Dilution |
|---|---|---|---|
| ELISA |  |
Where this product has not been tested for use in a particular technique this does not necessarily exclude its use in such procedures. Suggested working dilutions are given as a guide only. It is recommended that the user titrates the product for use in their own system using appropriate negative/positive controls.
- Technical Advice
- Recommended protocols and further information about HuCAL recombinant antibody technology can be found in the HuCAL Antibodies Technical Manual.
- ELISA
- Human Anti Eculizumab (Drug/Target Complex) Antibody, clone AbD32334 may be used in a PK bridging ELISA as capture antibody for the complex of eculizumab (MCA6145) and human complement C5 in solution together with the Human Anti-Human C5 Antibody TZA034 as the detection reagent.
Protocol: PK bridging ELISA
| Description | Product Code | Applications | Pack Size | List Price | Your Price | Quantity | |
|---|---|---|---|---|---|---|---|
| Hispec Assay Diluent | BUF049A | E IY | 50 ml | Log in | |||
| List Price | Your Price | ||||||
| Log in | |||||||
| Description | Hispec Assay Diluent | ||||||
| Human anti Eculizumab | HCA312 | E | 0.1 mg |
|
Log in | ||
| List Price | Your Price | ||||||
|
|
Log in | ||||||
| Description | Human anti Eculizumab | ||||||
| Human anti Eculizumab | HCA313 | E | 0.1 mg |
|
Log in | ||
| List Price | Your Price | ||||||
|
|
Log in | ||||||
| Description | Human anti Eculizumab | ||||||
| Human anti Eculizumab:HRP | HCA313P | E | 0.1 mg |
|
Log in | ||
| List Price | Your Price | ||||||
|
|
Log in | ||||||
| Description | Human anti Eculizumab:HRP | ||||||
| Human anti Eculizumab | HCA314 | E | 0.1 mg |
|
Log in | ||
| List Price | Your Price | ||||||
|
|
Log in | ||||||
| Description | Human anti Eculizumab | ||||||
| Human anti Eculizumab | HCA315 | E | 0.1 mg |
|
Log in | ||
| List Price | Your Price | ||||||
|
|
Log in | ||||||
| Description | Human anti Eculizumab | ||||||
| Human anti C5 (Eculizumab Biosimilar) | MCA6145 | E | 0.2 mg |
|
Log in | ||
| List Price | Your Price | ||||||
|
|
Log in | ||||||
| Description | Human anti C5 (Eculizumab Biosimilar) | ||||||
| Human anti Human Complement C5 | TZA034 | E | 0.1 mg |
|
Log in | ||
| List Price | Your Price | ||||||
|
|
Log in | ||||||
| Description | Human anti Human Complement C5 | ||||||
| Human anti Human Complement C5:HRP | TZA034P | E | 0.1 mg |
|
Log in | ||
| List Price | Your Price | ||||||
|
|
Log in | ||||||
| Description | Human anti Human Complement C5:HRP | ||||||
- Synonyms
- Soliris
HCA339
167508
If you cannot find the batch/lot you are looking for please contact our technical support team for assistance.
View more products with ECULIZUMAB specificity
Please Note: All Products are "FOR RESEARCH PURPOSES ONLY"
