Durvalumab antibody | AbD41240
A microtiter plate was coated overnight with various antigens at a concentration of 5 μg/ml. After washing and blocking with PBST + 5% BSA, Human Anti-Durvalumab (Drug/Target complex) Antibody, clone AbD41240ad (TZA002) at a concentration of 2 μg/ml was added. Detection was performed using HRP conjugated anti-DYKDDDDK tag antibody in HISPEC Assay Diluent (BUF049A) followed by QuantaBlu Fluorogenic Peroxidase Substrate.

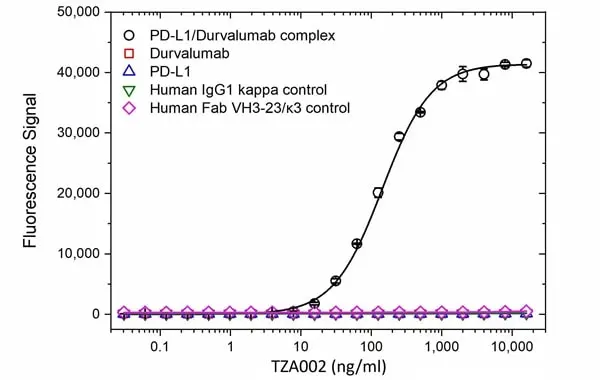

A microtiter plate was coated overnight with durvalumab, human PD-L1, human IgG1 kappa isotype control or human Fab VH3-23/κ3 control at a concentration of 5 µg/ml. After washing and blocking with PBST + 5% BSA, the durvalumab/PD-L1 complex was formed by adding 5 µg/ml durvalumab to the wells coated with PD-L1. Detection was performed using Human Anti-Durvalumab (Drug/Target complex) Antibody, clone AbD41240ad (TZA002) titrated to the given concentrations in PBST, followed by an HRP conjugated anti-DYKDDDDK tag antibody in HISPEC Assay Diluent (BUF049A) followed by QuantaBlu Fluorogenic Peroxidase Substrate. Data are shown as the mean of three measurements.
A microtiter plate was coated overnight with human PD-L1 at a concentration of 5 µg/ml. After washing and blocking with PBST + 5% BSA, 10% human serum was added spiked with increasing concentrations of durvalumab to form the durvalumab/PD-L1 complex. Detection was performed using HRP conjugated Human Anti-Durvalumab (Drug/Target complex) Antibody, clone AbD41240pap (TZA002P) at a concentration of 0.5 µg/ml in HISPEC Assay Diluent (BUF049A) followed by QuantaBlu Fluorogenic Peroxidase Substrate. Data are shown as the mean of three measurements.
Human anti Durvalumab (Drug/Target Complex)
- Product Type
- Monoclonal Antibody
- Clone
- AbD41240
- Isotype
- Fab antibody
- Specificity
- Durvalumab
- Region
- DRUG/TARGET COMPLEX
Antibody Quality and Performance Guarantee
| Human Anti-Durvalumab (Drug/Target Complex) Antibody, clone AbD41240 specifically recognizes the antibody drug durvalumab when in complex with its target, PD-L1 (programmed cell death ligand 1). The antibody does not recognize free durvalumab nor unbound recombinant human PD-L1. It can be used to measure levels of durvalumab in patient samples. This TrailBlazer Antibody is available in two different formats, monovalent Fab unconjugated (TZA002) and bivalent Fab conjugated to HRP (TZA002P). The monovalent recombinant Fab antibody has a SpyTag incorporated, which is used to create the bivalent format by coupling two SpyTagged Fab antibodies to an HRP conjugated BiSpyCatcher2 (TZC002P). Either format can be used to develop a pharmacokinetic (PK) antigen capture assay to measure free durvalumab captured via immobilized PD-L1. The antibody is tagged with a SpyTag2 at the C-terminus of the Fab antibody heavy chain, enabling the user to couple it to any of the SpyCatchers in our catalog for conversion to alternative formats in less than one hour. View a summary of all SpyCatcher products Durvalumab (Imfinzi) is a human IgG1/kappa antibody with allotype G1m3. The CH2 domain was engineered with three amino acid substitutions (L238F, L239E, P335S) to reduce the Fc-mediated effector functions to prevent depletion of PD-L1+ T-cells. It was first approved for previously treated patients with advanced bladder cancer. It was later approved for the treatment of unresectable stage 3 NSCLC (Non-Small Cell Lung Cancer) and ES-SCLC. Durvalumab binds to PD-L1 to block the interaction with the inhibitory T cell receptor PD-1. This blockade removes the suppression of T-cells that are specific for MHC-1-presented neoepitopes on tumor cells. Removal of this inhibitory signal leads to the release of granzymes and perforins by the activated T-cells, and finally to the destruction of the tumor cells. View a summary of all anti-durvalumab antibodies |
- Product Form
- A monovalent human recombinant Fab (lambda light chain) selected from the HuCAL® phage display library, expressed in a proprietary E. coli strain. The antibody is tagged with a DYKDDDDK tag, a SpyTag version 2 (VPTIVMVDAYKRYK) and a His6-tag (HHHHHH) at the C-terminus of the antibody heavy chain. This antibody is supplied as a liquid.
- Preparation
- Metal chelate affinity chromatography
- Source
- E.coli
- Buffer Solution
- Phosphate buffered saline
- Preservative Stabilisers
- 0.0095% MIT
- Immunogen
- PD-L1/Durvalumab complex
- Affinity
- The monovalent intrinsic affinity of AbD41240ad was measured as KD = 13 nM by real time, label free molecular interaction analysis on immobilized PD-L1/dupilumab complex.
- Approx. Protein Concentrations
- Antibody concentration 0.5 mg/ml
- Regulatory
- For research purposes only
- Guarantee
- 12 months from date of despatch
- Acknowledgements
- This product and/or its use is covered by claims of U.S. patents, and/or pending U.S. and non-U.S. patent applications owned by or under license to Bio-Rad Laboratories, Inc. See bio-rad.com/en-us/trademarks for details.
His-tag is a registered trademark of EMD Biosciences.
Imfinzi is a trademark of Medimmune/AstraZeneca using Abgenix`s XenoMouse® technology.
This product is shipped at ambient temperature. It is recommended to aliquot and store at -20°C on receipt. When thawed, aliquot the sample as needed. Keep aliquots at 2-8°C for short term use (up to 4 weeks) and store the remaining aliquots at -20°C.
Avoid repeated freezing and thawing as this may denature the antibody. Storage in frost-free freezers is not recommended.
Avoid repeated freezing and thawing as this may denature the antibody. Storage in frost-free freezers is not recommended.
This product has been reported to work in the following applications. This information is derived from testing within our laboratories, peer-reviewed publications or personal communications from the originators. Please refer to references indicated for further information. For general protocol recommendations, please visit the antibody protocols page.
| Application Name | Verified | Min Dilution | Max Dilution |
|---|---|---|---|
| ELISA |  |
Where this product has not been tested for use in a particular technique this does not necessarily exclude its use in such procedures. Suggested working dilutions are given as a guide only. It is recommended that the user titrates the product for use in their own system using appropriate negative/positive controls.
- Technical Advice
- Recommended protocols for coupling a Fab antibody with a SpyTag to a SpyCatcher can be found at SpyTag and SpyCatcher Products, and further information about HuCAL recombinant antibody technology can be found in the HuCAL Antibodies Technical Manual
- ELISA
- Clone AbD41240ad can be used as the detection antibody in a PK Antigen Capture ELISA to measure durvalumab in complex with PD-L1.
Protocol: PK Antigen Capture ELISA
| Description | Product Code | Applications | Pack Size | List Price | Your Price | Quantity | |
|---|---|---|---|---|---|---|---|
| SpyTag3 Peptide | BLP086 | IY | 1 mg |
|
Log in | ||
| List Price | Your Price | ||||||
|
|
Log in | ||||||
| Description | SpyTag3 Peptide | ||||||
| Hispec Assay Diluent | BUF049A | E IY | 50 ml | Log in | |||
| List Price | Your Price | ||||||
| Log in | |||||||
| Description | Hispec Assay Diluent | ||||||
| Human anti Durvalumab | HCA359 | E | 0.1 mg |
|
Log in | ||
| List Price | Your Price | ||||||
|
|
Log in | ||||||
| Description | Human anti Durvalumab | ||||||
| Human anti Durvalumab | HCA360 | E | 0.1 mg |
|
Log in | ||
| List Price | Your Price | ||||||
|
|
Log in | ||||||
| Description | Human anti Durvalumab | ||||||
| LYNX Rapid HRP Antibody Conjugation Kit | LNK002P | CJ | 3 Conjugations For 400µg Antibody | Log in | |||
| List Price | Your Price | ||||||
| Log in | |||||||
| Description | LYNX Rapid HRP Antibody Conjugation Kit | ||||||
| Human anti Durvalumab (Drug/Target Complex):HRP | TZA002P | E | 0.1 mg | Log in | |||
| List Price | Your Price | ||||||
| Log in | |||||||
| Description | Human anti Durvalumab (Drug/Target Complex):HRP | ||||||
| Human anti Durvalumab | TZA004 | E | 0.1 mg | Log in | |||
| List Price | Your Price | ||||||
| Log in | |||||||
| Description | Human anti Durvalumab | ||||||
- Synonyms
- Imfinzi
- Licensed Use
- For in vitro research purposes only, unless otherwise specified in writing by Bio-Rad.
TZA002
163202
If you cannot find the batch/lot you are looking for please contact our technical support team for assistance.
