Atezolizumab antibody | AbD40638ia
A microtiter plate was coated overnight with various antigens at a concentration of 5 μg/ml. After washing and blocking with PBST + 5% BSA, detection was performed using HRP conjugated Human Anti-Atezolizumab Antibody, clone AbD40638ia (HCA382) at a concentration of 2 μg/ml in HISPEC Assay Diluent (BUF049A) followed by QuantaBlu Fluorogenic Peroxidase Substrate. HRP conjugation of the antibody used in this assay was performed using a LYNX Rapid HRP Antibody Conjugation Kit (LNK002P).

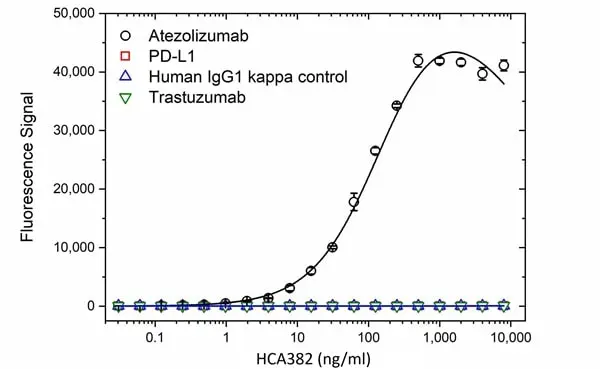

A microtiter plate was coated overnight with atezolizumab, human PD-L1, human IgG1 kappa control and trastuzumab (allotype control) at a concentration of 5 µg/ml. After washing and blocking with PBST + 5% BSA, detection was performed using HRP conjugated Human Anti-Atezolizumab Antibody, clone AbD40638ia (HCA382) titrated to the given concentrations in HISPEC Assay Diluent (BUF049A) followed by QuantaBlu Fluorogenic Peroxidase Substrate. Data are shown as the mean of three measurements. HRP conjugation of the antibody used in this assay was performed using a LYNX Rapid HRP Antibody Conjugation Kit (LNK002P).

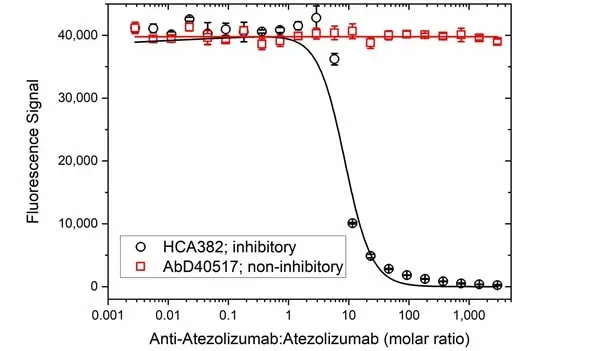

A microtiter plate was coated overnight with human PD-L1 at a concentration of 1 µg/ml. After washing and blocking with PBST + 5% BSA, a pre-incubated mixture of atezolizumab (0.15 µg/ml) plus increasing concentrations of Human Anti-Atezolizumab Antibody, clone AbD40638ia (HCA382, inhibitory) or clone AbD40517 (non-inhibitory control), both in the monovalent Fab format, were added. Free atezolizumab, still capable of binding to the human PD-L1 coated plate, was detected using HRP conjugated Mouse anti Human Fc specific Antibody (MCA647P) followed by QuantaBlu Fluorogenic Peroxidase Substrate. Data are shown as the mean of three measurements.

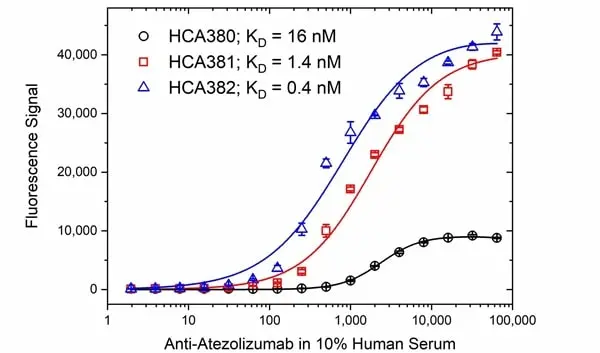

A microtiter plate was coated overnight with atezolizumab at a concentration of 1 µg/ml. After washing and blocking with PBST + 5% BSA, PBST with 10% human serum was added spiked with increasing concentrations of Human Anti-Atezolizumab Antibody, clone AbD41002ia (HCA380, black), clone AbD40992ia (HCA381, red) or AbD40638ia (HCA382). Detection was performed using HRP conjugated atezolizumab followed by QuantaBlu Fluorogenic Peroxidase Substrate. HRP conjugation of the antibody used in this assay was performed using a LYNX Rapid HRP Antibody Conjugation Kit (LNK002P). Data are shown as the mean of three measurements.
Human anti Atezolizumab
- Product Type
- Monoclonal Antibody
- Clone
- AbD40638ia
- Isotype
- IgG1
- Specificity
- Atezolizumab
Antibody Quality and Performance Guarantee
| Human Anti-Atezolizumab Antibody, clone AbD40638ia is a paratope specific, inhibitory anti-idiotypic antibody (Type 1) that specifically recognizes the free monoclonal antibody drug atezolizumab. It does not recognize the drug target, Programmed Cell Death Ligand 1 (PD-L1), nor atezolizumab in complex with PD-L1. The antibody can be used to measure levels of free atezolizumab in patient samples. Clone AbD40638ia is a fully human recombinant monoclonal antibody with IgG1 isotype and can be used as a surrogate positive control or reference standard in an anti-drug antibody (ADA) assay. This antibody has a monovalent intrinsic affinity of 0.4 nM, and is one of three Type 1 antibodies with different affinities offered for ADA assays. Clone AbD40638ia is also available in a monovalent Fab format with a SpyTag2 at the C-terminus of the Fab antibody heavy chain, enabling the user to couple it to a SpyCatcher reagent for conversion to alternative formats in less than one hour under product code TZA011. Atezolizumab (Tecentriq) is a human monoclonal IgG1 antibody that binds directly to Programmed Death Ligand 1 (PD-L1, CD274) and provides a dual blockade of both the PD-1 and B7.1 receptors on T-cells and antigen presenting cells. It is one of the named “checkpoint inhibitor” drugs. PD-L1/PD-1 mediated inhibition of the immune response is thereby released, including reactivation of the anti-tumour immune response without induction of antibody-dependent cellular cytotoxicity. The drug is used to treat urothelial carcinoma, non-small cell lung cancer, triple-negative breast cancer, small cell lung cancer and hepatocellular carcinoma. It is used either on its own or in combination for cancers which are advanced or metastatic. View a summary of all anti-atezolizumab antibodies |
|
- Product Form
- Human IgG1 antibody (kappa light chain) selected from the HuCAL phage display library and expressed in a human cell line. This antibody is supplied as a liquid.
- Preparation
- Purified IgG prepared by affinity chromatography on Protein A
- Source
- HKB-11
- Buffer Solution
- Phosphate buffered saline
- Preservative Stabilisers
- 0.09% Sodium Azide (NaN3)
- Immunogen
- Atezolizumab
- Affinity
- The intrinsic affinity of the monovalent form of Human anti Atezolizumab antibody, clone AbD40638ia is KD = 0.4 nM as measured by real time, label free molecular interaction analysis on immobilized Atezolizumab.
- Approx. Protein Concentrations
- Antibody concentration 0.5 mg/ml
- Regulatory
- For research purposes only
- Guarantee
- 12 months from date of despatch
- Acknowledgements
- This product and/or its use is covered by claims of U.S. patents, and/or pending U.S. and non-U.S. patent applications owned by or under license to Bio-Rad Laboratories, Inc. See bio-rad.com/en-us/trademarks for details.
Tecentriq is a trademark of Roche/ Genentech.. - Licensed Use
- For in vitro research purposes and for commercial applications for the provision of in vitro testing services to support preclinical and clinical drug development. Any re-sale in any form or any other commercial application needs a written agreement with Bio-Rad.
This product is shipped at ambient temperature. It is recommended to aliquot and store at -20°C on receipt. When thawed, aliquot the sample as needed. Keep aliquots at 2-8°C for short term use (up to 4 weeks) and store the remaining aliquots at -20°C.
Avoid repeated freezing and thawing as this may denature the antibody. Storage in frost-free freezers is not recommended.
Avoid repeated freezing and thawing as this may denature the antibody. Storage in frost-free freezers is not recommended.
This product has been reported to work in the following applications. This information is derived from testing within our laboratories, peer-reviewed publications or personal communications from the originators. Please refer to references indicated for further information. For general protocol recommendations, please visit the antibody protocols page.
| Application Name | Verified | Min Dilution | Max Dilution |
|---|---|---|---|
| ELISA |  |
Where this product has not been tested for use in a particular technique this does not necessarily exclude its use in such procedures. Suggested working dilutions are given as a guide only. It is recommended that the user titrates the product for use in their own system using appropriate negative/positive controls.
- Technical Advice
- Recommended protocols and further information about HuCAL recombinant antibody technology can be found in the HuCAL Antibodies Technical Manual.
- ELISA
- Human anti Atezolizumab antibody, clone AbD40638ia can be used in a direct and indirect ELISA. It can also be used as a calibrator in an anti-drug (ADA) antibody assay.
Protocol: ADA bridging ELISA.
| Description | Product Code | Applications | Pack Size | List Price | Your Price | Quantity | |
|---|---|---|---|---|---|---|---|
| Hispec Assay Diluent | BUF049A | E IY | 50 ml | Log in | |||
| List Price | Your Price | ||||||
| Log in | |||||||
| Description | Hispec Assay Diluent | ||||||
| Human anti Atezolizumab | HCA380 | E | 0.1 mg |
|
Log in | ||
| List Price | Your Price | ||||||
|
|
Log in | ||||||
| Description | Human anti Atezolizumab | ||||||
| Human anti Atezolizumab | HCA381 | E | 0.1 mg |
|
Log in | ||
| List Price | Your Price | ||||||
|
|
Log in | ||||||
| Description | Human anti Atezolizumab | ||||||
| LYNX Rapid HRP Antibody Conjugation Kit | LNK002P | CJ | 3 Conjugations For 400µg Antibody | Log in | |||
| List Price | Your Price | ||||||
| Log in | |||||||
| Description | LYNX Rapid HRP Antibody Conjugation Kit | ||||||
| Human anti Atezolizumab | TZA011 | E | 0.1 mg |
|
Log in | ||
| List Price | Your Price | ||||||
|
|
Log in | ||||||
| Description | Human anti Atezolizumab | ||||||
- Synonyms
- Tecentriq
- RRID
- AB_2943069
HCA382
166026
If you cannot find the batch/lot you are looking for please contact our technical support team for assistance.
