Atezolizumab antibody | AbD40638ad
A microtiter plate was coated overnight with various antigens at a concentration of 5 μg/ml. After washing and blocking with PBST + 5% BSA, Human Anti-Atezolizumab Antibody, clone AbD40638ad (TZA011) at a concentration of 2 μg/ml was added. Detection was performed using HRP conjugated anti-DYKDDDDK tag antibody in HISPEC Assay Diluent (BUF049A) followed by QuantaBlu Fluorogenic Peroxidase Substrate.

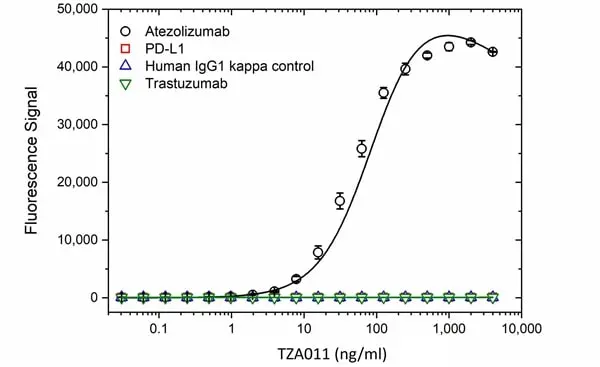

A microtiter plate was coated overnight with atezolizumab, human PD-L1, human IgG1 kappa isotype control or trastuzumab (allotype control) at a concentration of 5 µg/ml. After washing and blocking with PBST + 5% BSA, detection was performed using Human Anti-Atezolizumab Antibody, clone AbD40638ad (TZA011) titrated to the given concentrations in PBST, followed by an HRP conjugated anti-DYKDDDDK tag antibody in HISPEC Assay Diluent (BUF049A) followed by QuantaBlu Fluorogenic Peroxidase Substrate. Data are shown as the mean of three measurements.

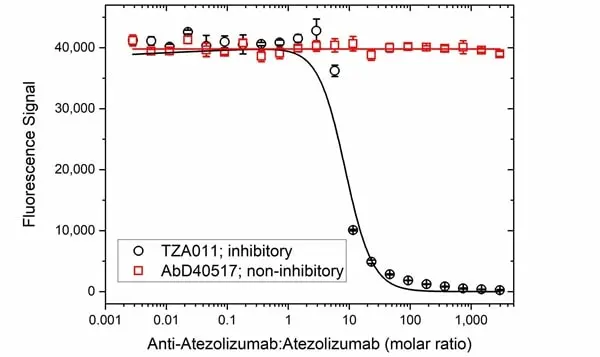

A microtiter plate was coated overnight with human PD-L1 at a concentration of 1 µg/ml. After washing and blocking with PBST + 5% BSA, a pre-incubated mixture of atezolizumab (0.15 µg/ml) plus increasing concentrations of Human Anti-Atezolizumab Antibody, clone AbD40638ad (TZA011, inhibitory) or clone AbD40517ad (non-inhibitory control) was added. Both antibodies were in the monovalent Fab fragment format. Free atezolizumab, still capable of binding to the human PD-L1 coated plate, was detected using HRP conjugated Mouse anti Human Fc specific Antibody (MCA647P) followed by QuantaBlu Fluorogenic Peroxidase Substrate. Data are shown as the mean of three measurements.
A microtiter plate was coated overnight with Human Anti-Atezolizumab Antibody, clone AbD40638ad (TZA011) at a concentration of 1 µg/ml. After washing and blocking with PBST + 5% BSA, 10% human serum was added spiked with increasing concentrations of atezolizumab. Detection was performed using HRP conjugated Human Anti-Atezolizumab Antibody, clone AbD40992ia (HCA381) at a concentration of 0.5 µg/ml in HISPEC Assay Diluent (BUF049A) followed by QuantaBlu Fluorogenic Peroxidase Substrate. Data are shown as the mean of three measurements. HRP conjugation of the antibody used in this assay was performed using a LYNX Rapid HRP Antibody Conjugation Kit (LNK002P).
Human anti Atezolizumab
- Product Type
- Monoclonal Antibody
- Clone
- AbD40638ad
- Isotype
- Fab antibody
- Specificity
- Atezolizumab
Antibody Quality and Performance Guarantee
| Human Anti-Atezolizumab Antibody, clone AbD40638ad is a paratope specific, inhibitory anti-idiotypic antibody (Type 1) that specifically recognizes the free monoclonal antibody drug atezolizumab. It does not recognize the drug target, Programmed Cell Death Ligand 1 (PD-L1), nor atezolizumab in complex with PD-L1. The antibody can be used to measure levels of free atezolizumab in patient samples. The antibody is tagged with a SpyTag2 at the C-terminus of the Fab antibody heavy chain, enabling the user to couple it to a SpyCatcher reagent for conversion to alternative formats in less than one hour. View a summary of all SpyCatcher products A pair of anti-atezolizumab antibodies can be used to develop a pharmacokinetic (PK) bridging assay to measure free drug. This antibody, in monovalent Fab format, is recommended as the capture antibody, together with clone AbD40992ia (HCA381) as the detection antibody. Clone AbD40638ad is also available in full length IgG1 format under product code HCA382. Atezolizumab (Tecentriq) is a human monoclonal IgG1 antibody that binds directly to Programmed Cell Death Ligand 1 (PD-L1, CD274) and provides a dual blockade of both the PD-1 and B7.1 receptors on T-cells and antigen presenting cells. It is one of the named “checkpoint inhibitor” drugs. PD-L1/PD-1 mediated inhibition of the immune response is thereby released, including reactivation of the anti-tumour immune response without induction of antibody-dependent cellular cytotoxicity. The drug is used to treat urothelial carcinoma, non-small cell lung cancer, triple-negative breast cancer, small cell lung cancer and hepatocellular carcinoma. It is used either on its own or in combination for cancers which are advanced or metastatic. View a summary of all anti-atezolizumab antibodies |
|
- Product Form
- A monovalent human recombinant Fab (kappa light chain) selected from the HuCAL® phage display library, expressed in a proprietary E. coli strain. The antibody is tagged with a DYKDDDDK tag, a SpyTag version 2 (VPTIVMVDAYKRYK) and a His6-tag (HHHHHH) at the C-terminus of the antibody heavy chain. This antibody is supplied as a liquid.
- Preparation
- Metal chelate affinity chromatography
- Source
- E.coli
- Buffer Solution
- Phosphate buffered saline
- Preservative Stabilisers
- 0.0095% MIT
- Immunogen
- Atezolizumab
- Affinity
- The monovalent intrinsic affinity of AbD40638ad was measured as KD = 0.4 nM by real time, label free molecular interaction analysis on immobilized atezolizumab.
- Approx. Protein Concentrations
- Antibody concentration 0.5 mg/ml
- Regulatory
- For research purposes only
- Guarantee
- 12 months from date of despatch
- Acknowledgements
- This product and/or its use is covered by claims of U.S. patents, and/or pending U.S. and non-U.S. patent applications owned by or under license to Bio-Rad Laboratories, Inc. See bio-rad.com/en-us/trademarks for details.
His-tag is a registered trademark of EMD Biosciences.
Tecentriq is a trademerk of Roche/ Genentech. - Licensed Use
- For in vitro research purposes and for commercial applications for the provision of in vitro testing services to support preclinical and clinical drug development. Any re-sale in any form or any other commercial application needs a written agreement with Bio-Rad.
This product is shipped at ambient temperature. It is recommended to aliquot and store at -20°C on receipt. When thawed, aliquot the sample as needed. Keep aliquots at 2-8°C for short term use (up to 4 weeks) and store the remaining aliquots at -20°C.
Avoid repeated freezing and thawing as this may denature the antibody. Storage in frost-free freezers is not recommended.
Avoid repeated freezing and thawing as this may denature the antibody. Storage in frost-free freezers is not recommended.
This product has been reported to work in the following applications. This information is derived from testing within our laboratories, peer-reviewed publications or personal communications from the originators. Please refer to references indicated for further information. For general protocol recommendations, please visit the antibody protocols page.
| Application Name | Verified | Min Dilution | Max Dilution |
|---|---|---|---|
| ELISA |  |
Where this product has not been tested for use in a particular technique this does not necessarily exclude its use in such procedures. Suggested working dilutions are given as a guide only. It is recommended that the user titrates the product for use in their own system using appropriate negative/positive controls.
- Technical Advice
- Recommended protocols for coupling a Fab antibody with a SpyTag to a SpyCatcher can be found at SpyTag and SpyCatcher Products, and further information about HuCAL recombinant antibody technology can be found in the HuCAL Antibodies Technical Manual
- ELISA
- Clone AbD40638ad can be used as the capture antibody for atezolizumab in a PK ELISA together with HCA381 as the detection antibody.
PK bridging ELISA
| Description | Product Code | Applications | Pack Size | List Price | Your Price | Quantity | |
|---|---|---|---|---|---|---|---|
| SpyTag3 Peptide | BLP086 | IY | 1 mg |
|
Log in | ||
| List Price | Your Price | ||||||
|
|
Log in | ||||||
| Description | SpyTag3 Peptide | ||||||
| Hispec Assay Diluent | BUF049A | E IY | 50 ml | Log in | |||
| List Price | Your Price | ||||||
| Log in | |||||||
| Description | Hispec Assay Diluent | ||||||
| Human anti Atezolizumab | HCA380 | E | 0.1 mg |
|
Log in | ||
| List Price | Your Price | ||||||
|
|
Log in | ||||||
| Description | Human anti Atezolizumab | ||||||
| Human anti Atezolizumab | HCA381 | E | 0.1 mg |
|
Log in | ||
| List Price | Your Price | ||||||
|
|
Log in | ||||||
| Description | Human anti Atezolizumab | ||||||
| Human anti Atezolizumab:HRP | HCA381P | E | 0.1 mg |
|
Log in | ||
| List Price | Your Price | ||||||
|
|
Log in | ||||||
| Description | Human anti Atezolizumab:HRP | ||||||
| Human anti Atezolizumab | HCA382 | E | 0.1 mg |
|
Log in | ||
| List Price | Your Price | ||||||
|
|
Log in | ||||||
| Description | Human anti Atezolizumab | ||||||
| LYNX Rapid HRP Antibody Conjugation Kit | LNK002P | CJ | 3 Conjugations For 400µg Antibody | Log in | |||
| List Price | Your Price | ||||||
| Log in | |||||||
| Description | LYNX Rapid HRP Antibody Conjugation Kit | ||||||
| BiSpyCatcher2:Biotin | TZC002B | IY | 1 mg |
|
Log in | ||
| List Price | Your Price | ||||||
|
|
Log in | ||||||
| Description | BiSpyCatcher2:Biotin | ||||||
| BiSpyCatcher2:HRP | TZC002P | IY | 1 mg |
|
Log in | ||
| List Price | Your Price | ||||||
|
|
Log in | ||||||
| Description | BiSpyCatcher2:HRP | ||||||
- Synonyms
- Tecentriq
- RRID
- AB_2943371
TZA011
166027
If you cannot find the batch/lot you are looking for please contact our technical support team for assistance.
