Aflibercept antibody | AbD34644pap
Human anti Aflibercept:HRP
- Product Type
- Monoclonal Antibody
- Clone
- AbD34644pap
- Isotype
- Fab antibody
- Specificity
- Aflibercept
Antibody Quality and Performance Guarantee
TZA0141P
A microtiter plate was coated overnight with various antigens at a concentration of 5 μg/ml. After washing and blocking with PBST + 5% BSA, detection was performed using HRP conjugated Human Anti-Aflibercept Antibody, clone AbD34644pap (TZA0141P) at a concentration of 0.2 μg/mL in HISPEC Assay Diluent (BUF049A) followed by QuantaBlu Fluorogenic Peroxidase Substrate.

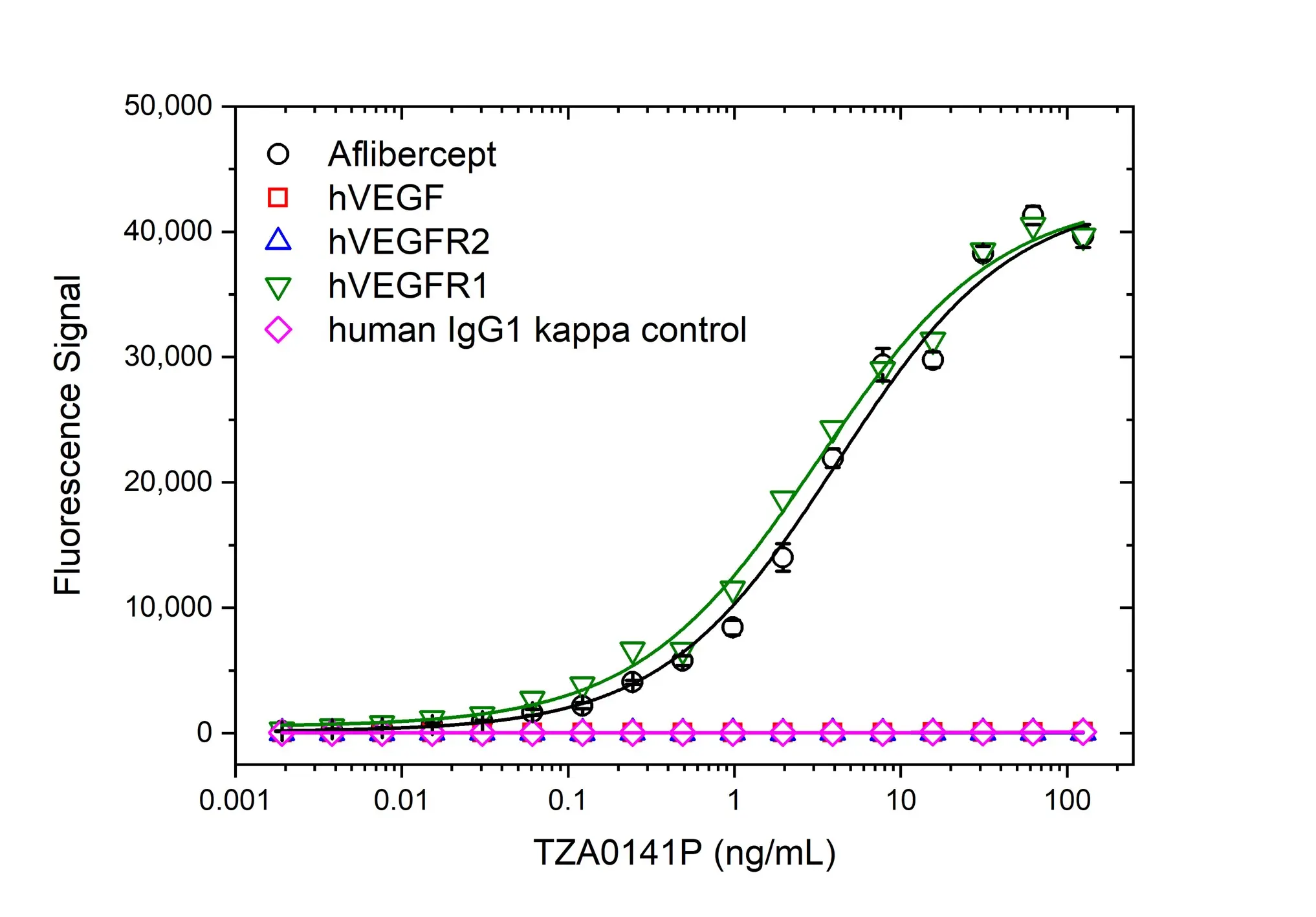

A microtiter plate was coated overnight with Aflibercept, human vascular endothelial growth factor (VEGF), human VEGFR2, human VEGFR1 and human IgG1 kappa control at a concentration of 5 µg/ml. After washing and blocking with PBST + 5% BSA, detection was performed using HRP conjugated Human Anti-Aflibercept Antibody, clone AbD34644pap (TZA0141P) titrated to the given concentrations in HISPEC Assay Diluent (BUF049A) and QuantaBlu fluorogenic peroxidase substrate. Data for aflibercept are shown as the mean of three measurements.

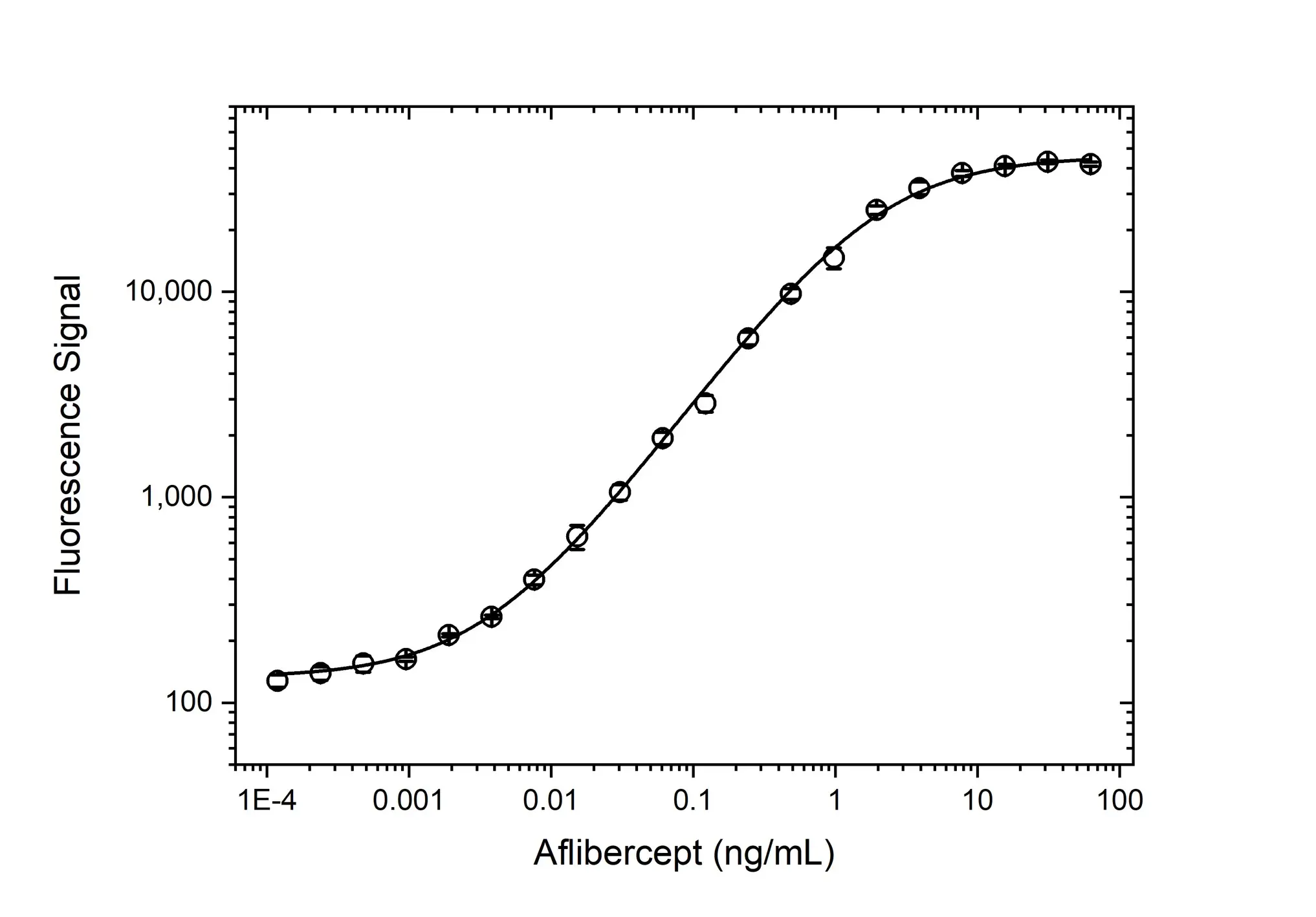

A microtiter plate was coated overnight with Human Anti Aflibercept Antibody, clone AbD38778da (HCA390) at a concentration of 1 µg/mL. After washing and blocking with PBST + 5% BSA, 10% human serum was added spiked with increasing concentrations of aflibercept. Detection was performed using HRP-conjugated Human Anti-Aflibercept Antibody, clone AbD34644pap (TZA0141P) at a concentration of 0.5 µg/mL in HISPEC Assay Diluent (BUF049A) and QuantaBlu fluorogenic peroxidase substrate. Data are shown as the mean of three measurements.

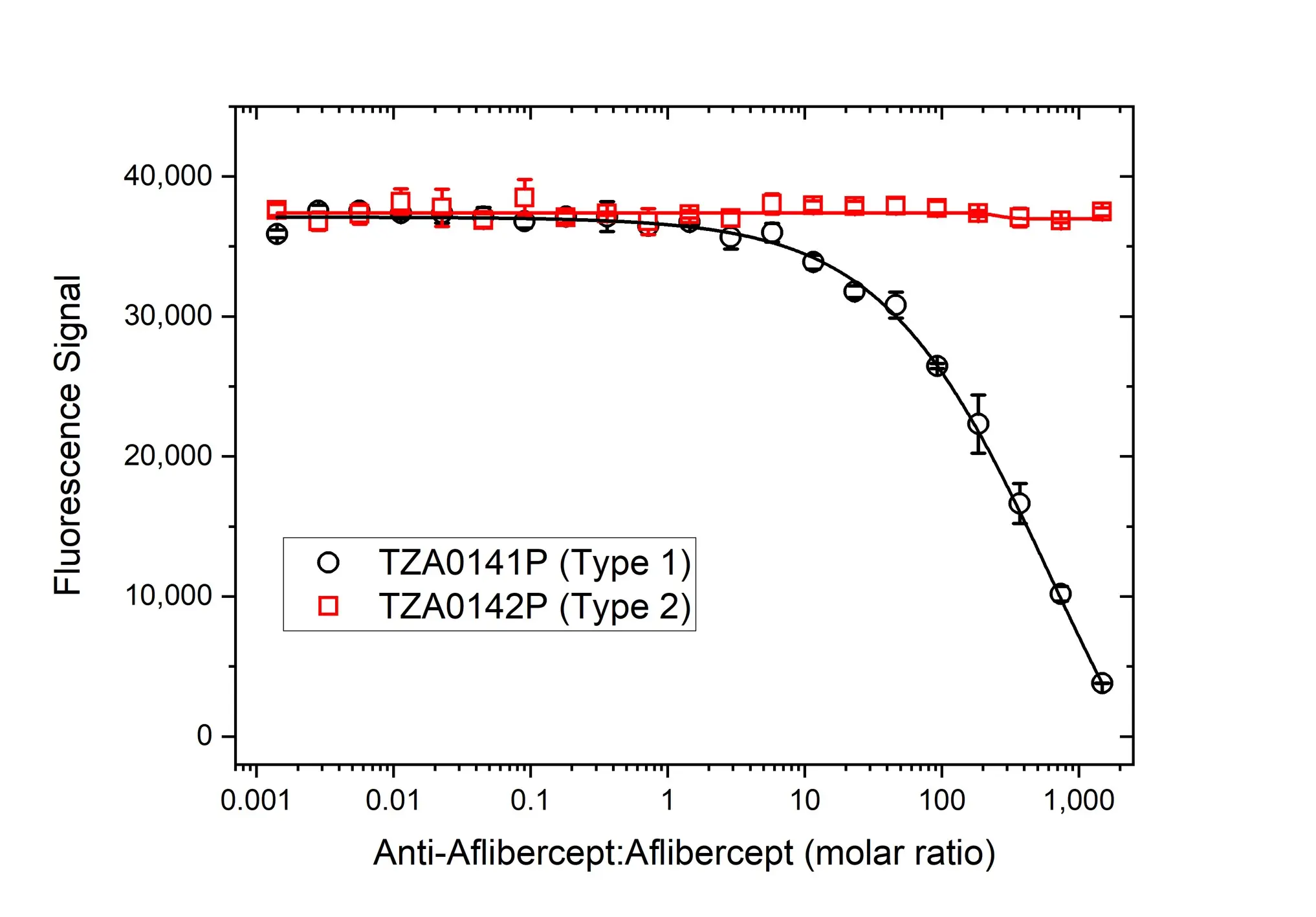

A microtiter plate was coated overnight with human VEGF at a concentration of 1 µg/mL. After washing and blocking with PBST + 5% BSA, a pre-incubated mixture of aflibercept (0.2 µg/mL) plus increasing concentrations of Human Anti- Aflibercept Antibody, clone AbD34644pap (TZA0141P) and AbD38771pap (TZA0142P) in the monovalent Fab format was added. Free aflibercept, still capable of binding to the human VEGF coated plate, was detected using HRP conjugated Mouse anti Human IgG (Fc) CH2 domain antibody ((MCA647P) followed by QuantaBlu fluorogenic peroxidase substrate. Data are shown as the mean of three measurements.
Filter by Application:
E Reset| Human Anti-Aflibercept Antibody, clone AbD34644pap is a paratope specific, inhibitory antibody that specifically recognizes the free fusion protein drug aflibercept as well as the vascular endothelial growth factor receptor 1 (VEGFR1) but not the vascular endothelial growth factor receptor 2 (VEGFR2). It does not recognize free VEGF nor aflibercept in complex with VEGFR. TZA0141P, clone AbD34644pap is a bivalent Fab antibody already conjugated to HRP via coupling to the HRP conjugated BiSpyCatcher2 (TZC002P) for use in direct ELISA. A pair of anti-aflibercept antibodies can be used to develop a pharmacokinetic (PK) bridging assay to measure free drug. Clone AbD34644pap is recommended as the detection antibody, paired with Human Anti-Aflibercept Antibody in monovalent Fab format, clone AbD38778da (HCA390) as the capture antibody. Aflibercept (Eylea, Zaltrap) is a recombinant fusion protein consisting of the extra-cellular domain of human VEGF receptors 1 and 2, fused to the Fc portion of human IgG1. It is used to treat the 'wet' form of age-related macular degeneration (AMD) and impaired vision due to macular oedema. It is also used in the treatment of metastatic colorectal cancer in combination with 5-fluorouracil, leucovorin and irinotecan in patients previously treated with an oxaliplatin-containing chemotherapy. Aflibercept binds to circulating VEGF-A and VEGF-B to inhibit their ability to promote angiogenesis. View a summary of all anti aflibercept antibodies |
- Product Form
- A bivalent human recombinant Fab (kappa light chain) generated by coupling of the monovalent SpyTagged Fab with a HRP conjugated BiSpyCatcher version 2 (TZC002P). The coupled antibody has two DYKDDDDK tags and three His6-tags. It contains SpyTag3 peptide (BLP086) in 5-fold molar excess to block any unreacted Catcher sites. This antibody is supplied as a liquid.
- Preparation
- Metal chelate affinity chromatography
- Source
- E.coli
- Buffer Solution
- Phosphate buffered saline
- Preservative Stabilisers
- 0.0095% MIT
- Immunogen
- Aflibercept
- Affinity
- The intrinsic affinity of the monovalent form of Human anti Aflibercept antibody, clone AbD34644pap is KD = 11 nM as measured by real time, label free molecular interaction analysis on immobilized Aflibercept
- Approx. Protein Concentrations
- Antibody concentration 0.5 mg/ml
- Regulatory
- For research purposes only
- Guarantee
- 12 months from date of despatch
- Acknowledgements
- This product and/or its use is covered by claims of U.S. patents, and/or pending U.S. and non-U.S. patent applications owned by or under license to Bio-Rad Laboratories, Inc. See bio-rad.com/en-us/trademarks for details.
Eylea is a trademark of Regeneron/Sanofi.
Zaltrap is a trademark of Regeneron/Bayer Healthcare. - Licensed Use
- For in vitro research purposes and for commercial applications for the provision of in vitro testing services to support preclinical and clinical drug development. Any re-sale in any form or any other commercial application needs a written agreement with Bio-Rad.
This product is shipped frozen.
When ready to use, thaw and aliquot the sample as needed. Store aliquots at -70°C, if available, otherwise store at -20°C. It is not recommended to keep aliquots at 4°C for more than one week
When ready to use, thaw and aliquot the sample as needed. Store aliquots at -70°C, if available, otherwise store at -20°C. It is not recommended to keep aliquots at 4°C for more than one week
This product has been reported to work in the following applications. This information is derived from testing within our laboratories, peer-reviewed publications or personal communications from the originators. Please refer to references indicated for further information. For general protocol recommendations, please visit the antibody protocols page.
| Application Name | Verified | Min Dilution | Max Dilution |
|---|---|---|---|
| ELISA |  |
Where this product has not been tested for use in a particular technique this does not necessarily exclude its use in such procedures. Suggested working dilutions are given as a guide only. It is recommended that the user titrates the product for use in their own system using appropriate negative/positive controls.
- Technical Advice
- Recommended protocols for coupling a Fab antibody with a SpyTag to a SpyCatcher can be found at SpyTag and SpyCatcher Products, and further information about HuCAL recombinant antibody technology can be found in the HuCAL Antibodies Technical Manual
- ELISA
- Clone AbD34644pap can be used in direct or indirect ELISA to detect aflibercept. It can also be used as a detection antibody to develop a pharmacokinetic (PK) bridging ELISA for aflibercept together with HCA390 as the capture reagent.
Protocol: PK bridging ELISA
