Aflibercept antibody | AbD38720da
A microtiter plate was coated overnight with various antigens at a concentration of 5 μg/ml. After washing and blocking with PBST + 5% BSA, detection was performed using Human Anti-Aflibercept Antibody, clone AbD38720ad (HCA389) at a concentration of 2 μg/ml followed by a HRP conjugated Anti-DYKDDDDK tag Antibody in HISPEC Assay Diluent (BUF049A) followed by QuantaBlu Fluorogenic Peroxidase Substrate.

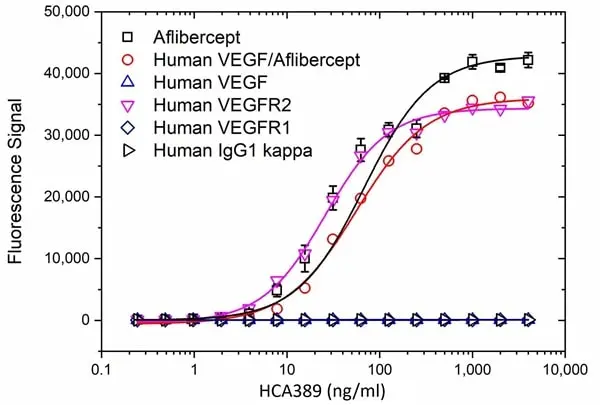

A microtiter plate was coated overnight with aflibercept, human VEGF, human VEGFR1, human VEGFR2 or human IgG1 kappa control at a concentration of 5 µg/ml. After washing and blocking with PBST + 5% BSA, the human VEGF/Aflibercept complex was formed by adding 5 µg/ml aflibercept to the wells coated with human VEGF. Detection was performed using Human Anti-Aflibercept Antibody, clone AbD38720da (HCA389) titrated to the given concentrations in PBST followed by a HRP conjugated Anti-DYKDDDDK tag Antibody in HISPEC Assay Diluent (BUF049A) followed by QuantaBlu Fluorogenic Peroxidase Substrate. Data for aflibercept is shown as the mean of three measurements.
A microtiter plate was coated overnight with Human Anti-Aflibercept Antibody, clone AbD38720da (HCA389) at a concentration of 1 µg/ml. After washing and blocking with PBST + 5% BSA, 10% human serum was added spiked with increasing concentrations of aflibercept. Detection was performed using HRP conjugated Human Anti-Aflibercept Antibody, clone AbD38771ia (HCA388) at a concentration of 2 µg/ml in HISPEC Assay Diluent (BUF049A) followed by QuantaBlu Fluorogenic Peroxidase Substrate. Data are shown as the mean of three measurements. HRP conjugation of the antibody used in this assay was performed using a LYNX Rapid HRP Antibody Conjugation Kit (LNK002P).
Human anti Aflibercept
- Product Type
- Monoclonal Antibody
- Clone
- AbD38720da
- Isotype
- HuCAL Fab monovalent
- Specificity
- Aflibercept
Antibody Quality and Performance Guarantee
HCA389
| Human Anti-Aflibercept Antibody, clone AbD38720da is a recombinant antibody that specifically recognizes the fusion protein drug aflibercept as well as the vascular endothelial growth factor receptor 2 (VEGFR2). It does not recognize vascular endothelial growth factor receptor 1 (VEGFR1). It does not inhibit the binding of aflibercept to its target, the vascular endothelial growth factor (VEGF); it binds to both free aflibercept and aflibercept bound to its target VEGF and can be used to measure total aflibercept and its biosimilars in bioanalytical assays. A pair of anti-aflibercept antibodies can be used to develop a pharmacokinetic (PK) bridging assay to measure total drug. This antibody, in monovalent Fab format, is recommended as the capture antibody, paired with the Human Anti-Aflibercept Antibody, clone AbD38771ia (HCA388) as the detection antibody. Aflibercept (Eylea, Zaltrap) is a recombinant fusion protein consisting of the extra-cellular domain of human VEGF receptors 1 and 2, fused to the Fc portion of human IgG1. It is used to treat the 'wet' form of age-related macular degeneration (AMD) and impaired vision due to macular oedema. It is also used in the treatment of metastatic colorectal cancer in combination with 5-fluorouracil, leucovorin and irinotecan in patients previously treated with an oxaliplatin-containing chemotherapy. Aflibercept binds to circulating VEGF-A and VEGF-B to inhibit their ability to promote angiogenesis. View a summary of all anti aflibercept antibodies |
- Product Form
- A monovalent human recombinant Fab (kappa light chain) selected from the HuCAL phage display library, expressed in E. coli. The antibody is tagged with a DYKDDDDK tag and a Strep tag at the C-terminus of the antibody heavy chain. This antibody is supplied as a liquid.
- Preparation
- Metal chelate affinity chromatography
- Source
- E. coli
- Buffer Solution
- Phosphate buffered saline
- Preservative Stabilisers
- 0.09% Sodium Azide (NaN3)
- Immunogen
- Aflibercept
- Affinity
- The intrinsic affinity of the monovalent form of Human anti Aflibercept antibody, clone AbD38720da is KD = 1 nM as measured by real time, label free molecular interaction analysis on immobilized Aflibercept
- Approx. Protein Concentrations
- Antibody concentration 0.5 mg/ml
- Regulatory
- For research purposes only
- Guarantee
- 12 months from date of despatch
- Acknowledgements
- This product and/or its use is covered by claims of U.S. patents, and/or pending U.S. and non-U.S. patent applications owned by or under license to Bio-Rad Laboratories, Inc. See bio-rad.com/en-us/trademarks for details.
Eylea is a trademark of Regeneron/Sanofi.
Zaltrap is a trademark of Regeneron/Bayer Healthcare. - Licensed Use
- For in vitro research purposes and for commercial applications for the provision of in vitro testing services to support preclinical and clinical drug development. Any re-sale in any form or any other commercial application needs a written agreement with Bio-Rad.
This product is shipped at ambient temperature. It is recommended to aliquot and store at -20°C on receipt. When thawed, aliquot the sample as needed. Keep aliquots at 2-8°C for short term use (up to 4 weeks) and store the remaining aliquots at -20°C.
Avoid repeated freezing and thawing as this may denature the antibody. Storage in frost-free freezers is not recommended.
Avoid repeated freezing and thawing as this may denature the antibody. Storage in frost-free freezers is not recommended.
This product has been reported to work in the following applications. This information is derived from testing within our laboratories, peer-reviewed publications or personal communications from the originators. Please refer to references indicated for further information. For general protocol recommendations, please visit the antibody protocols page.
| Application Name | Verified | Min Dilution | Max Dilution |
|---|---|---|---|
| ELISA |  |
Where this product has not been tested for use in a particular technique this does not necessarily exclude its use in such procedures. Suggested working dilutions are given as a guide only. It is recommended that the user titrates the product for use in their own system using appropriate negative/positive controls.
- Technical Advice
- Recommended protocols and further information about HuCAL recombinant antibody technology can be found in the HuCAL Antibodies Technical Manual.
This antibody contains a Strep-tag and will react with streptavidin. - ELISA
- Human anti Aflibercept antibody, clone AbD38720da can be used in an indirect ELISA. It can also be used as the capture antibody for aflibercept in a PK bridging ELISA together with HCA388 as the detection antibody.
Protocol: PK Bridging ELISA
